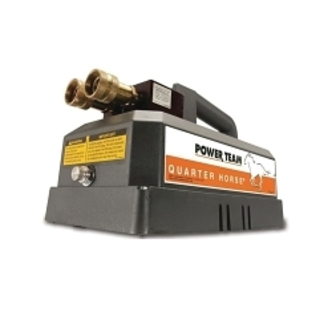

Power Team SPX PR102

Power Team Quarter Horse PR102 2-Speed Portable Single Acting Battery Powered Hydraulic Pump, 1/4 hp, 2 Stages, 60 cu-in Reservoir, 10 cu-in Flow Rate, 0 to 10000 psi Pressure

Invoice description: Pumpe 2speed 12v Pumpe 2speed 12v

UPC: 662536225120
UNSPSC: 40151533
Manufacturer PN: PR102
$3,321.54 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Quarter Horse Battery Powered Hydraulic Pump, 2-Speed Portable Single Acting, Series: PR10, 2 Stage, 60 cu-in Reservoir, 1/4 hp, 10 cu-in Flow Rate, 0 to 10000 psi Pressure, 12 V, 35 A, 13 in Overall Length, 7-3/4 in Overall Width, 8 in Overall Height

  • Features

  • Portable power source for hydraulic cylinders and tools
  • Permanent magnet motor starts easily under load, even with reduced voltage conditions
  • Pump typically delivers 15 minutes of continuous operation at 10000 psi (700 bar) on a single battery
  • Pump can be operated in any position
  • High impact housing with flame retardant construction
  • Base mounting holes for fixed installations
  • Battery operated models have 8 ft power cord with alligator clips to connect to any 12 V battery

Specifications

ApplicationFor use with powering tools and up to 25 ton cylinders
Amperage Rating35 A
Flow Rate10 cu-in
Horsepower1/4 hp
Number of Stages2
Overall Height8 in
Overall Length13 in
Overall Width7-3/4 in
Pressure Rating0 to 10000 psi
Reservoir Capacity60 cu-in
SeriesPR10
Type2-Speed Portable Single Acting
Voltage Rating12 V

Additional Information

Standards/ApprovalCSA File No. LR19814
