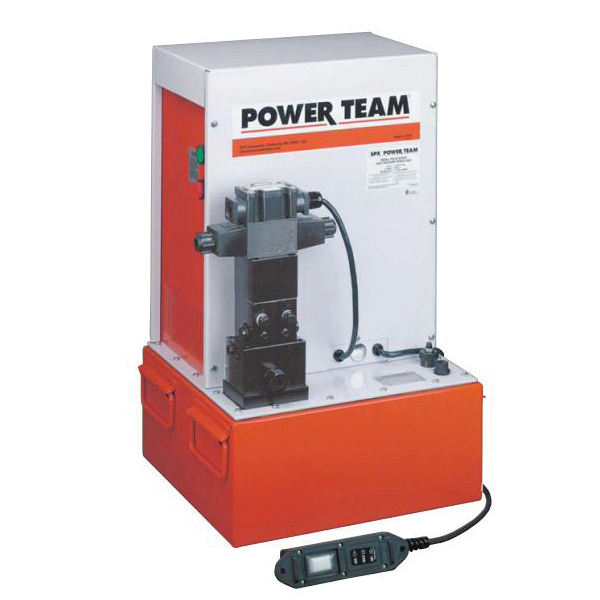

Power Team SPX PQ604S

Power Team Electric/Hydraulic Pump, Series: PQ60, 1250 cu-in Reservoir, 2 hp, 60/65/70/730 cu-in/min Flow Rate, 10000 psi Pressure, 230 VAC, 11 A, 60 Hz Frequency, 1725 rpm Speed, 15-1/2 in Overall Length, 14-1/4 in Overall Width, 25-1/8 in Overall Height

• Features

• For operating single or double acting cylinders
• Metal shroud keeps dirt and moisture out of motor and electrical components
• Electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
• Internal relief valve limits pressure to 10000 psi (700 bar)
• External relief valve is adjustable from 1000 to 10000 psi
• Pumps operate below maximum OSHA noise limitation 74 to 76 dBA
• Start and operate under full load, even with voltage reduced by 10%
• 60 cu-in/min at 10000 psi, 65 cu-in/min at 5000 psi, 70 cu-in/min at 1000 psi, 730 cu-in/min at 100 psi

Specifications

Additional Information

Documents

• Catalog

• Line Drawing

• Owners/user Manual
