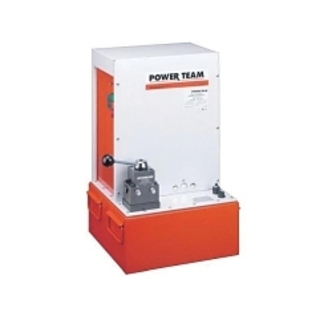

Power Team SPX PQ604-115

Power Team Electric Hydraulic Pump, Series: PQ60, 2 Stage, 1250 cu-in Reservoir, 2 hp, 49 cu-in/min Flow Rate, 100 to 10000 psi Pressure, 115 VAC, 22 A, 60 Hz Frequency, 1725 rpm Speed, 15-1/2 in Overall Length, 14-1/4 in Overall Width, 25-1/8 in Overall Height

• Features

• For operating single or double acting cylinders
• Metal shroud keeps dirt and moisture out of motor and electrical components
• Electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
• Internal relief valve limits pressure to 10000 psi (700 bar)
• External relief valve is adjustable from 1000 to 10000 psi (70 to 700 bar)
• Pumps operate below maximum OSHA noise limitation
• Start and operate under full load, even with voltage reduced by 10%

Specifications

Additional Information

Documents

• Instruction/installation Manual

• Line Drawing

• Specification Sheet
