Power Team SPX PQ603S

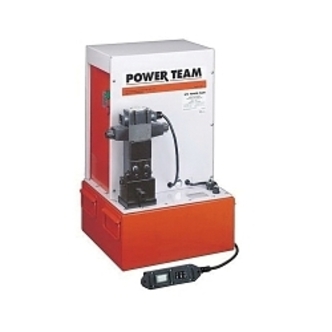

Power Team PQ603S Electric Hydraulic Pump, 2 hp, 2 Stages, 1250 cu-in Reservoir, 60 cu-in/min Flow Rate, 100 to 10000 psi Pressure

Invoice description: Pumpe 60 Cu In/min 230v 60hz Pumpe 60 Cu In/min 230v60hz

UPC: 662536002424

UNSPSC: 40151533

Manufacturer PN: PQ603S

^$14,706.36 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Power Team Electric Hydraulic Pump, Series: PQ60, 2 Stage, 1250 cu-in Reservoir, 2 hp, 60 cu-in/min Flow Rate, 100 to 10000 psi Pressure, 115/230 VAC, 22 A, 60 Hz Frequency, 1725 rpm Speed, 15-1/2 in Overall Length, 14-1/4 in Overall Width, 25-1/8 in Overall Height

Features
For operating single or double acting cylinders
Metal shroud keeps dirt and moisture out of motor and electrical components
Electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
Internal relief valve limits pressure to 10000 psi (700 bar)
External relief valve is adjustable from 1000 to 10000 psi (70 to 700 bar)
Pumps operate below maximum OSHA noise limitation
Start and operate under full load, even with voltage reduced by 10%
