Power Team SPX PQ603-50-220

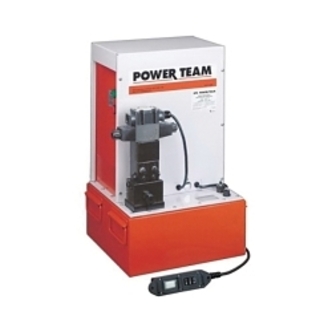

Power Team PQ603-50-220 Single Acting Electric Hydraulic Pump, 2 hp, 2 Stages, 1250 cu-in Reservoir, 100 to 10000 psi Pressure
Invoice description:
Pumpe 3w 220v 50hz 5.7 G Al Pumpe 3w 220v 50hz 5.7 Gal
UPC: 662536132466
UNSPSC:
40151533
Manufacturer PN: PQ603-50-220
$10,759.27 EA
Factory OrderEstimated to ship in 7 days
Power Team Electric Hydraulic Pump, Single Acting, Series: PQ60, 2 Stage, 1250 cu-in Reservoir, 2 hp, 100 to 10000 psi Pressure, 220 VAC, 11 A, 50 Hz Frequency, 1725 rpm Speed, 15-1/2 in Overall Length, 14-1/4 in Overall Width, 25-1/8 in Overall Height
Features
- Pump designed specifically for heavy duty, extended cycle operation
- For operating single or double acting cylinders
- Metal shroud keeps dirt and moisture out of motor and electrical components
- Electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
- Pumps operate below maximum OSHA noise limitation
- Start and operate under full load, even with voltage reduced by 10%
Specifications
ApplicationFor use with heavy duty and extended cycle operation for up to 200 ton cylinders
Amperage Rating11 A
Frequency Rating50 Hz
Horsepower2 hp
Number of Stages2
Overall Height25-1/8 in
Overall Length15-1/2 in
Overall Width14-1/4 in
Pressure Rating100 to 10000 psi
Reservoir Capacity1250 cu-in
SeriesPQ60
Speed1725 rpm
TypeSingle Acting
Voltage Rating220 VAC
Line Drawing
