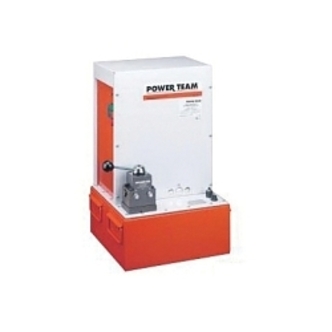

Power Team SPX PQ1204

Power Team Electric Hydraulic Pump, Series: PQ120, 2 Stage, 1250 cu-in Reservoir, 3 hp, 120 cu-in/min Flow Rate, 100 to 10000 psi Pressure, 230/460 VAC, 10.5 A, 60 Hz Frequency, 1725 rpm Speed, 15-1/2 in Overall Length, 14-1/4 in Overall Width, 25-1/8 in Overall Height

• Features

• Start and operate under full load, even with voltage reduced 10%
• Electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
• Internal relief valve limits pressure to 10000 psi (700 bar)
• External relief valve is adjustable from 1000 to 10000 psi (70 to 700 bar)
• Pump prewired at factory with a 3 hp, 460 V, 60 Hz (2.24 kW, 380 V, 50 Hz), 3 ph motor
• 24 V control circuits on units with remote controls for added user/operator safety
• 3 hp 3 ph motor with thermal overload protection
• Motor starter and heater element supplied as standard equipment, no hidden charges
• Metal shroud keeps dirt and moisture out of motor and electrical components
• Pumps operate below maximum OSHA noise limitation

Specifications

Additional Information

Documents

• Specification Sheet

• Line Drawing

• Instruction/installation Manual
