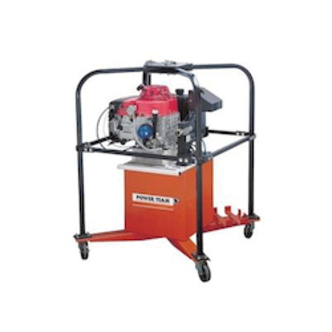

Power Team SPX PG1203

Power Team Gasoline Pump, Series: PG120, 1300 cu-in Reservoir, 10000 psi Maximum, Engine HP: 5.5 hp, 3600 rpm Engine, 130 cu-in/min Flow Rate, 3-Way Valve, 26-1/4 in Overall Length, 15-1/2 in Overall Width, 27-7/8 in Overall Height

• Features

• Two speed high performance pumps ideal for construction, structure moving and rigging applications
• A logical choice at work sites where electricity or compressed air are unavailable
• All gasoline engine/hydraulic pumps feature Posi-Check valve to guard against pressure loss when valve is shifted from advance to hold
• PG1200 series pumps powered by a Honda 4-cycle, 5.5 hp (4.1 kW) engine with automatic decompression and electronic ignition
• Deliver over 1/2 gal of oil per minute at 10000 psi (2.1 L/min at 700 bar)
• A 5 gal (19 L) reservoir means adequate capacity for multi-cylinder applications
• Dual element air cleaner protects engine from dusty environments
• Heavy duty roll cage provides pick-up points for lifting
• Rubber anti-skid insulation on bottom of reservoir resists skidding and dampens vibration
• Adjustable external pressure regulator

Specifications

Documents

• Specification Sheet
