Power Team SPX PED253-50-220

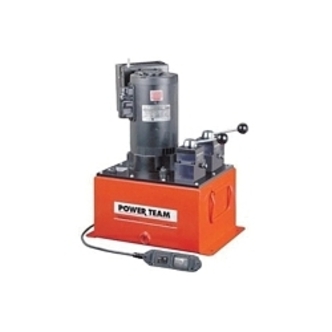

Power Team PED253-50-220 Single Acting Electric Hydraulic Dual Pump, 1-1/2 hp, 2 Stages, 1000 cu-in Reservoir, 100 to 10000 psi Pressure
Factory Order
Power Team Electric Hydraulic Dual Pump, Single Acting, Series: PED, 2 Stage, 1000 cu-in Reservoir, 1-1/2 hp, 100 to 10000 psi Pressure, 220 VAC, 15 A, 50 Hz Frequency, 3450 rpm Speed, 16-1/2 in Overall Length, 11-1/2 in Overall Width, 20-3/4 in Overall Height
Features
- Two speed pumps have the same low pressure and high pressure flows from both valves
- Flows and pressures of each pump are independent
- Each power unit contains two separate pumps and two separate valves allowing operator to control multiple processes with one power unit
- Both pumps on each power unit are equipped with an externally adjustable pressure relief valve
- Not recommended for frequent starting and stopping
Specifications
ApplicationFor use with running multiple tools or cylinders from one power unit and up to 75 ton cylinders
Amperage Rating15 A
Frequency Rating50 Hz
Horsepower1-1/2 hp
Number of Stages2
Overall Height20-3/4 in
Overall Length16-1/2 in
Overall Width11-1/2 in
Pressure Rating100 to 10000 psi
Reservoir Capacity1000 cu-in
SeriesPED
Speed3450 rpm
TypeSingle Acting
Voltage Rating220 VAC
Specification Sheet
