Power Team SPX PED253

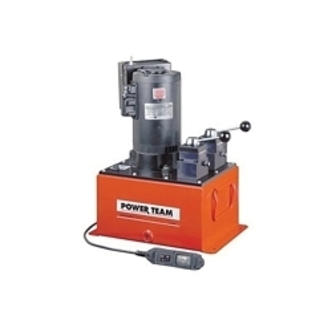

Power Team PED253 Electric Hydraulic Pump, 1-1/2 hp, 2 Stages, 1000 cu-in Reservoir, 25 cu-in/min Flow Rate, 100 to 10000 psi Pressure
Invoice description:
Pumpe 25 Cu In/min 115/2 30vac 60hz Pumpe 25 Cu In/min 115/230vac 60hz
UPC: 662536211406
UNSPSC:
40151533
Manufacturer PN: PED253
$11,486.74 EA
Factory OrderEstimated to ship in 7 days
Power Team Electric Hydraulic Pump, Series: PED, 2 Stage, 1000 cu-in Reservoir, 1-1/2 hp, 25 cu-in/min Flow Rate, 100 to 10000 psi Pressure, 115/230 VAC, 22 A, 60 Hz Frequency, 3450 rpm Speed, 18 in Overall Length, 13 in Overall Width, 20-3/4 in Overall Height
Features
- Two speed pumps have the same low pressure and high pressure flows from both valves
- Flows and pressures of each pump are independent
- Each power unit contains two separate pumps and two separate valves allowing operator to control multiple processes with one power unit
- Both pumps on each power unit are equipped with an externally adjustable pressure relief valve
- Not recommended for frequent starting and stopping
Specifications
ApplicationFor use with running multiple tools or cylinders from one power unit and up to 75 ton cylinders
Amperage Rating22 A
Flow Rate25 cu-in/min
Frequency Rating60 Hz
Horsepower1-1/2 hp
Number of Stages2
Overall Height20-3/4 in
Overall Length18 in
Overall Width13 in
Pressure Rating100 to 10000 psi
Reservoir Capacity1000 cu-in
SeriesPED
Speed3450 rpm
Voltage Rating115/230 VAC
Instruction/installation Manual
