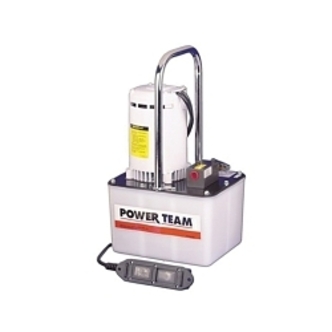

Power Team SPX PE84

Power Team PE84 Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 295 cu-in Reservoir, 0 to 10000 psi Pressure

UPC: 662536002011
UNSPSC:
Manufacturer PN: PE84
$8,885.44 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Hydraulic Pump, Portable, 2 Stage, 295 cu-in Reservoir, 1/2 hp, 0 to 10000 psi Pressure, 115 VAC, 10 A, 50/60 Hz Frequency, 1750 rpm Speed, 9-1/4 in Overall Length, 11-3/8 in Overall Width, 18-1/2 in Overall Height

  • Features

  • For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
  • For intermittent duty, starts under full load
  • Low amperage draw, small generators and low amperage circuits can be used as power source
  • Extremely quiet noise level

Specifications

ApplicationMaintenance and Construction Applications
Amperage Rating10 A
Frequency Rating50/60 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height18-1/2 in
Overall Length9-1/4 in
Overall Width11-3/8 in
Pressure Rating0 to 10000 psi
Reservoir Capacity295 cu-in
Speed1750 rpm
TypePortable
Voltage Rating115 VAC
