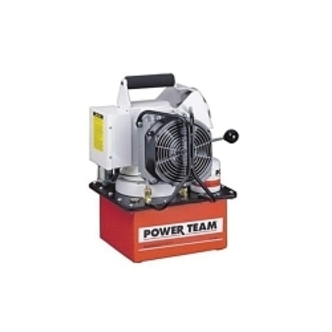

Power Team SPX PE604PT-220

Power Team PE604PT-220 Portable Post Tensioning Electric Hydraulic Pump, 1-1/8 hp, 2 Stages, 157 cu-in Reservoir, 56 cu-in/min Flow Rate, 0 to 10000 psi Pressure

Invoice description: Pumpe 4w 3p 220v 60/50hz S/d Pumpe 4w 3p 220v 60/50hz S/d

UPC: 662536339032

UNSPSC: 40151533

Manufacturer PN: PE604PT-220

^$10,426.95 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Power Team Electric Hydraulic Pump, Portable Post Tensioning, Series: PE60, 2 Stage, 157 cu-in Reservoir, 1-1/8 hp, 56 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 220 VAC, 25 A, 50/60 Hz Frequency, 3/8 in FNPT Pressure Port, 12000 rpm Speed, 15 in Overall Length, 9.31 in Overall Width, 18-1/4 in Overall Height

Features
Long, trouble free life in the most demanding work environments
For operating single or double acting cylinders or stressing jacks
Powered by 1-1/8 hp, 115 volt, 60/50 Hz (0.84 kW, 220 V, 60/50 Hz) single phase motor, starts under load, even at the reduced voltages at construction sites
Insulated carrying handle
Integral 4 in (102 mm) diameter fluid-filled pressure gauge with steel bezel complies with ASME B40.1 grade A
0 to 10000 psi (0 to 700 bar) pressure range in 100 psi (7 bar) increments
Sealed 3/4 gal 4.34 L (usable) reservoir
Reservoir drain port is standard
Standard oil level sight gauge for accurate oil level monitoring
External spin-on filter removes contaminants from circulating oil to maximize pump, valve and cylinder/tool life
