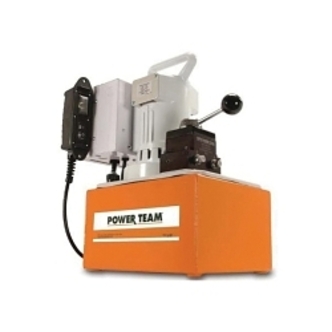

Power Team SPX PE554PT

Power Team Vanguard PE554PT Portable Electric Hydraulic Pump, 1-1/8 hp, 2 Stages, 525 cu-in Reservoir, 56 cu-in/min Flow Rate, 0 to 10000 psi Pressure

UPC: 662536375771
UNSPSC:
Manufacturer PN: PE554PT
$14,677.69 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Vanguard Electric Hydraulic Pump, Portable, Series: PE55, 2 Stage, 525 cu-in Reservoir, 1-1/8 hp, 56 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 25 A, 50/60 Hz Frequency, 12000 rpm Speed, 14 in Overall Length, 9-1/2 in Overall Width, 18-1/4 in Overall Height

  • Features

  • 1-1/8 hp (0.48 kW), 12000 rpm, 110/115 (220) V, 50/60 Hz universal motor, draws 25 A at full load, starts at reduced voltage
  • Remote motor control
  • True unloading valve achieves greater pump efficiency, allowing higher flows at maximum pressure
  • Lightweight and portable
  • Best weight to performance ratio of all Power Team pumps

Specifications

ApplicationFor heavy duty multiple application pump, heavy construction and concrete stressing
Amperage Rating25 A
Flow Rate56 cu-in/min
Frequency Rating50/60 Hz
Horsepower1-1/8 hp
Number of Stages2
Overall Height18-1/4 in
Overall Length14 in
Overall Width9-1/2 in
Pressure Rating0 to 10000 psi
Reservoir Capacity525 cu-in
SeriesPE55
Speed12000 rpm
TypePortable
Voltage Rating110/115 VAC
