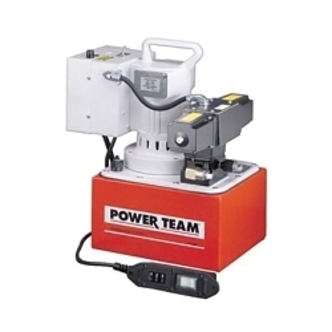

Power Team SPX PE553-50-220

Power Team Vanguard PE553-50-220 Portable Single Acting Electric Pump, 1-1/8 hp, 2 Stages, 525 cu-in Reservoir, 55 cu-in/min Flow Rate, 0 to 10000 psi Pressure

Invoice description: Pumpe 3w Posi Chk 220v 6 0/50hz 2.5 G Pumpe 3w Posi Chk 220v 60/50hz 2.5 G

UPC: 662536132008
UNSPSC: 40151533
Manufacturer PN: PE553-50-220
$9,034.76 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Vanguard Electric Pump, Portable Single Acting, Series: PE55, 2 Stage, 525 cu-in Reservoir, 1-1/8 hp, 55 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 220 VAC, 25 A, 50/60 Hz Frequency, 12000 rpm Speed, 9-1/2 in Overall Length, 14 in Overall Width, 18-1/4 in Overall Height

  • Features

  • True unloading valve achieves greater pump efficiency, allowing higher flows at maximum pressure
  • Light weight and portable
  • Best weight to performance ratio of all Power Team pumps

Specifications

ApplicationFor heavy duty multiple application pump
Amperage Rating25 A
Flow Rate55 cu-in/min
Frequency Rating50/60 Hz
Horsepower1-1/8 hp
Number of Stages2
Overall Height18-1/4 in
Overall Length9-1/2 in
Overall Width14 in
Pressure Rating0 to 10000 psi
Reservoir Capacity525 cu-in
SeriesPE55
Speed12000 rpm
TypePortable Single Acting
Voltage Rating220 VAC

Additional Information

Standards/ApprovalCSA File No. LR19814
