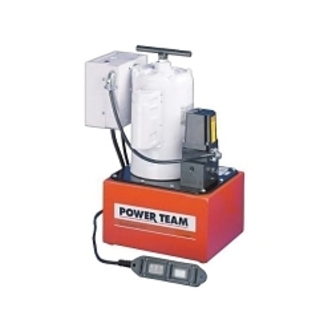

Power Team SPX PE462S-50-220
Power Team PE462S-50-220 Portable Electric Hydraulic Pump, 1-1/2 hp, 2 Stages, 590 cu-in Reservoir, 38 cu-in/min Flow Rate, 0 to 10000 psi Pressure
Factory Order
Power Team Electric Hydraulic Pump, Portable, Series: PE46, 2 Stage, 590 cu-in Reservoir, 1-1/2 hp, 38 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 220 VAC, 25.7 A, 50 Hz Frequency, 3450 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 19-5/8 in Overall Height
Features
- Two speed high performance pump
- For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
- Equipped with 1-1/2 hp (1.12 kW), 3450 (2875) rpm single phase, 60 (50) Hz thermal protected induction motor that starts under full load
- 24 V control circuits on all units with remote controls
- Noise level of 77-81 dBA
Specifications
ApplicationFor under the roof maintenance and production applications
Amperage Rating25.7 A
Flow Rate38 cu-in/min
Frequency Rating50 Hz
Horsepower1-1/2 hp
Number of Stages2
Overall Height19-5/8 in
Overall Length11-1/2 in
Overall Width9-1/2 in
Pressure Rating0 to 10000 psi
Reservoir Capacity590 cu-in
SeriesPE46
Speed3450 rpm
TypePortable
Voltage Rating220 VAC
