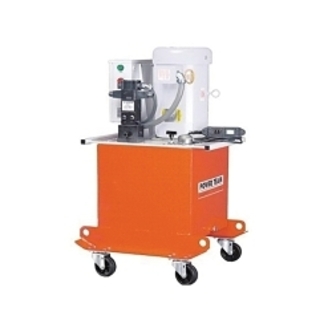

Power Team SPX PE4004

Power Team Electric Hydraulic Pump, Series: PE400, 2 Stage, 3927 cu-in Reservoir, 10 hp, 420 cu-in/min Flow Rate, 200 to 10000 psi Pressure, 208/230/460 VAC, 34 A, 60 Hz Frequency, 1725 rpm Speed, 25 in Overall Length, 24 in Overall Width, 36-3/8 in Overall Height

• Features

• Two speed high output pump delivers up to 5 gpm of oil
• Low noise level of 73 to 80 dBA
• Integral electrical shut down feature prevents unintentional restarting of motor following an electrical service interruption
• Stop and start control buttons are 24 V
• External pressure relief valve is adjustable from 1500 to 10000 psi (100 to 700 bar)
• Heavy duty 4 in (50.8 mm) diameter casters assure easy maneuvering
• Powered by a dual voltage 10 hp (7.46 kW), 3 ph, 1.725 (1.437) rpm motor
• 3 ph motor has all the electrical components necessary to operate the pump
• Over-current protection prevents damage to motor as a result of overheating
• PE4004 has a four way/three position manual valve

Specifications

Additional Information

Documents

• Instruction/installation Manual

• Specification Sheet
