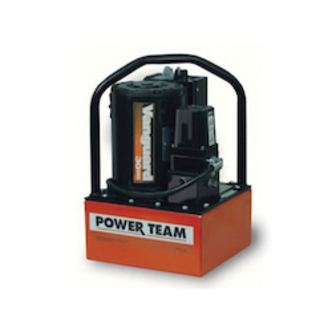

Power Team SPX PE302S-220

Power Team Vanguard PE302S-220 Portable Electric Hydraulic Pump, 1 hp, 2 Stages, 280 cu-in Reservoir, 0 to 10000 psi Pressure

UPC: 662536272896
UNSPSC:
Manufacturer PN: PE302S-220
$10,597.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Vanguard Electric Hydraulic Pump, Portable, Series: PE30, 2 Stage, 280 cu-in Reservoir, 1 hp, 0 to 10000 psi Pressure, 220/230 VAC, 13 A, 50 Hz Frequency, 4000 rpm Speed, 13 in Overall Length, 9-1/2 in Overall Width, 6-1/2 in Overall Height

  • Features

  • Deliver a powerful punch to operate single acting or double acting cylinders
  • Integral roll cage protects pump from abuse
  • High performance to weight ratio
  • Starts under full load even when voltage is reduced to 50% of nominal rating
  • Remote controls and/or solenoid valves feature 24 V controls

Specifications

ApplicationMaintenance and Construction Applications
Amperage Rating13 A
Frequency Rating50 Hz
Horsepower1 hp
Number of Stages2
Overall Height6-1/2 in
Overall Length13 in
Overall Width9-1/2 in
Pressure Rating0 to 10000 psi
Reservoir Capacity280 cu-in
SeriesPE30
Speed4000 rpm
TypePortable
Voltage Rating220/230 VAC

Documents
