Power Team SPX PE302R-220

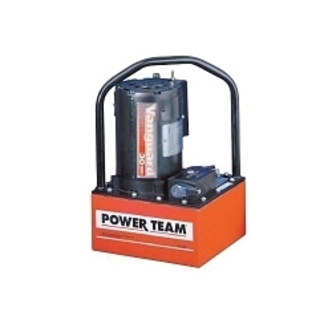

Power Team Vanguard PE302R-220 Portable Electric Hydraulic Pump, 1 hp, 2 Stages, 280 cu-in Reservoir, 30 cu-in/min Flow Rate, 0 to 10000 psi Pressure
Invoice description:
Pumpe 3w 2p R Cntrl 220/ 230v Pumpe 3w 2p R Cntrl 220/230v
UPC: 662536272797
UNSPSC:
40151533
Manufacturer PN: PE302R-220
$5,603.47 EA
Factory OrderEstimated to ship in 7 days
Power Team Vanguard Electric Hydraulic Pump, Portable, Series: PE30, 2 Stage, 280 cu-in Reservoir, 1 hp, 30 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 220/230 VAC, 13 A, 50/60 Hz Frequency, 4000 rpm Speed, 10 in Overall Length, 9 in Overall Width, 16 in Overall Height
Features
- Deliver a powerful punch to operate single acting or double acting cylinders
- Integral roll cage protects pump from abuse
- High performance to weight ratio
- Starts under full load even when voltage is reduced to 50% of nominal rating
- Remote controls and/or solenoid valves feature 24 V controls
Specifications
Amperage Rating13 A
Flow Rate30 cu-in/min
Frequency Rating50/60 Hz
Horsepower1 hp
Number of Stages2
Overall Height16 in
Overall Length10 in
Overall Width9 in
Pressure Rating0 to 10000 psi
Reservoir Capacity280 cu-in
SeriesPE30
Speed4000 rpm
TypePortable
Voltage Rating220/230 VAC
Specification Sheet
