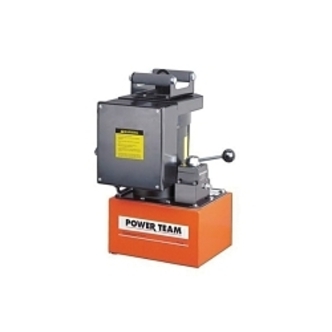

Power Team SPX PE213

Power Team Electric Hydraulic Pump, Series: PE21, 2 Stage, 590 cu-in Reservoir, 1 hp, 22 cu-in/min Flow Rate, 100 to 10000 psi Pressure, 115/230 VAC, 15 A, 60 Hz Frequency, 1725 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 21-3/8 in Overall Height

• Features

• Totally enclosed, fan cooled induction motor, thermal overload protection
• Remote controls, with 10 ft (3.1 m) cord is standard on pumps with solenoid valves
• Manual valve pumps have stop, start and run/off/pulse switches
• Motor drip cover with carrying handle and lifting lug
• Low noise level of 70 dBA at 10000 psi (700 bar)
• In the event of electrical interruption, pump shuts off and will not start up until operator presses the pump start button
• 24 V control circuits on units with remote controls provide additional user/operator safety
• Pump controls are moisture and dust resistant

Specifications

Additional Information

Documents

• Line Drawing

• Specification Sheet
