Power Team SPX PE183C

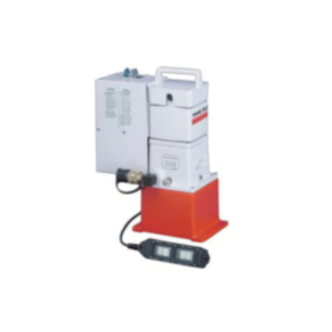

Power Team PE183C Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 525 cu-in Reservoir, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure
Factory Order
Power Team Electric Hydraulic Pump, Portable, Series: PE18, 2 Stage, 525 cu-in Reservoir, 1/2 hp, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 10.2 A, 50/60 Hz Frequency, 12000 rpm Speed, 11-1/4 in Overall Length, 7 in Overall Width, 16 in Overall Height
Features
- Vanguard Jr. pumps provide two speed high performance in a lightweight, compact package
- Gauge port provided on pump
- Equipped with 1/2 hp (0.37 kW), 115 volt, 60/50 Hz single phase motor that starts under load, even at reduced voltage
- Low amperage draw permits use with smaller generators and low amperage circuits
- Metal reservoir on all models
Specifications
ApplicationFor use with small hydraulically powered tools
Amperage Rating10.2 A
Flow Rate18 cu-in/min
Frequency Rating50/60 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height16 in
Overall Length11-1/4 in
Overall Width7 in
Pressure Rating0 to 10000 psi
Reservoir Capacity525 cu-in
SeriesPE18
Speed12000 rpm
TypePortable
Voltage Rating110/115 VAC
Line Drawing
