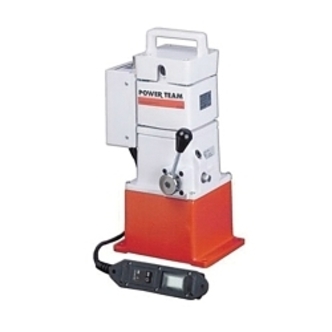

Power Team SPX PE183A-50-220

Power Team PE183A-50-220 Portable Single Acting Electric Hydraulic Pump, 1/2 hp, 2 Stages, 104 cu-in Reservoir, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure

Invoice description: Pump E Auto Dump 220v 50 Hz Pump E Auto Dump 220v 50 Hz

UPC: 662536131544
UNSPSC: 40151533
Manufacturer PN: PE183A-50-220
$6,226.19 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Hydraulic Pump, Portable Single Acting, Series: PE18, 2 Stage, 104 cu-in Reservoir, 1/2 hp, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 220 VAC, 10.2 A, 50 Hz Frequency, 12000 rpm Speed, 6 in Overall Length, 8 in Overall Width, 16 in Overall Height

  • Features

  • Ideal for use with small hydraulically powered tools
  • Vanguard Jr. pumps provide two speed high performance in a light-weight, compact package
  • Gauge port provided on pump
  • Metal reservoir on all models
  • Low amperage draw permits use with smaller generators and low amperage circuits
  • All pumps have a 10 ft (3 m) remote control (PE183C has 25 ft (7.6 m) remote control)

Specifications

Amperage Rating10.2 A
Flow Rate18 cu-in/min
Frequency Rating50 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height16 in
Overall Length6 in
Overall Width8 in
Pressure Rating0 to 10000 psi
Reservoir Capacity104 cu-in
SeriesPE18
Speed12000 rpm
TypePortable Single Acting
Voltage Rating220 VAC

Additional Information

Standards/ApprovalCSA File No. LR19814

Documents
