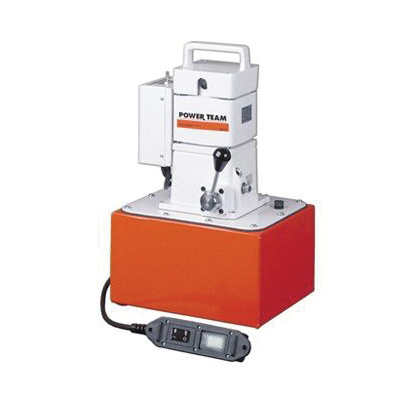

Power Team SPX PE183-2

Power Team Electric/Hydraulic Pump, 2-Speed Portable, Series: PE18 Vanguard Jr., 2 gal Reservoir, 1/2 hp, 18/25/190/230 cu-in/min Flow Rate, 10000 psi Pressure, 110/115 VAC, 10.2 A, 50/60 Hz Frequency, 12000 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 18-1/2 in Overall Height

• Features

• Vanguard Jr. pumps provide 2-speed high performance in a lightweight compact package
• Gauge port provided on pump
• Metal reservoir on all models
• Equipped with a 1/2 hp (0.37 kW), 115 V, 60/50 Hz single phase motor that starts under load, even at reduced voltage
• Low amperage draw permits use with smaller generators and low amperage circuits
• All pumps have a 10 ft remote control
• CSA rated for intermittent duty
• Noise level of 85 to 90 dBA
• Vanguard Jr. Series ideal for use with small hydraulically powered tools up to 55 ton
• 18 cu-in/min at 10000 psi, 25 cu-in/min at 5000 psi, 190 cu-in/min at 100 psi, 230 cu-in/min at 0 psi flow rate

Specifications

Additional Information

Documents

• Catalog

• Owners/user Manual

• Line Drawing
