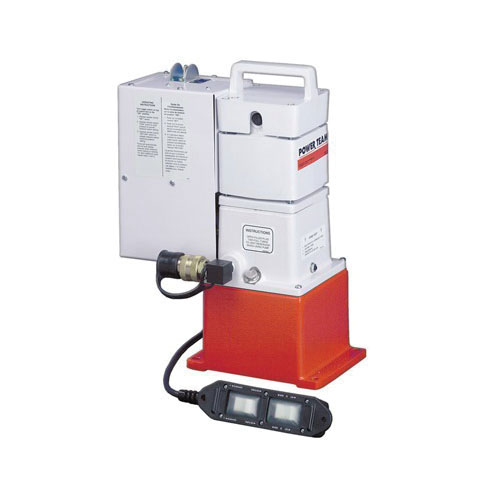

Power Team SPX PE183

Power Team PE183 Portable 2-Speed Electric Pump, 1/2 hp, 0.5 gal Reservoir, 10000 psi Pressure

Invoice description: Pumpe 18 Cu In/min 110/1 15vac 50/60hz Pumpe 18 Cu In/min 110/115vac 50/60hz

UNSPSC: 40151500
Manufacturer PN: PE183
$6,335.63 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Pump, Portable 2-Speed, Series: PE18, 0.5 gal Reservoir, 1/2 hp, 10000 psi Pressure, 110/115 VAC, 50/60 Hz Frequency, 12000 rpm Speed, 8 in Overall Length, 6 in Overall Width, 16 in Overall Height

  • Features

  • Vanguard Jr. pumps provide 2-speed high performance in a light-weight, compact package
  • Gauge port provided on pump
  • Low amperage draw permits use with smaller generators and low amperage circuits
  • All pumps have a 10 ft remote control
  • CSA rated for intermittent duty
  • Noise level of 85 to 90 dBA

Specifications

ApplicationFor use with small hydraulic single-acting cylinder power tools
Frequency Rating50/60 Hz
Horsepower1/2 hp
Overall Height16 in
Overall Length8 in
Overall Width6 in
Pressure Rating10000 psi
Reservoir Capacity0.5 gal
SeriesPE18
Speed12000 rpm
TypePortable 2-Speed
Voltage Rating110/115 VAC

Additional Information

Includes3-Way Valve and 10 ft Remote Control Cord
Standards/ApprovalCSA Certified
