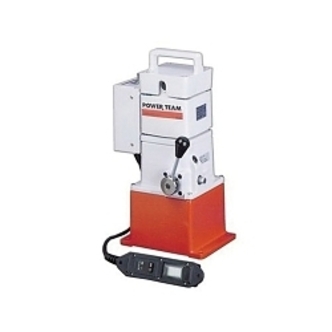

Power Team SPX PE182
Power Team PE182 Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 104 cu-in Reservoir, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure
Invoice description:
Pumpe 18 Cu In/min 110/1 15vac 50/60hz Pumpe 18 Cu In/min 110/115vac 50/60hz
UPC: 662536001649
UNSPSC:
40151533
Manufacturer PN: PE182
$6,215.64 EA
Factory OrderEstimated to ship in 7 days
Power Team Electric Hydraulic Pump, Portable, Series: PE18, 2 Stage, 104 cu-in Reservoir, 1/2 hp, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 10.2 A, 50/60 Hz Frequency, 12000 rpm Speed, 8 in Overall Length, 6 in Overall Width, 16 in Overall Height
Features
- Vanguard Jr. pumps provide two speed high performance in a lightweight, compact package
- Gauge port provided on pump
- Equipped with 1/2 hp (0.37 kW), 115 volt, 60/50 Hz single phase motor that starts under load, even at reduced voltage
- Low amperage draw permits use with smaller generators and low amperage circuits
- Metal reservoir on all models
Specifications
ApplicationFor use with small hydraulically powered tools
Amperage Rating10.2 A
Flow Rate18 cu-in/min
Frequency Rating50/60 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height16 in
Overall Length8 in
Overall Width6 in
Pressure Rating0 to 10000 psi
Reservoir Capacity104 cu-in
SeriesPE18
Speed12000 rpm
TypePortable
Voltage Rating110/115 VAC
Additional Information
Standards/ApprovalCSA File No. LR19814
Line Drawing
