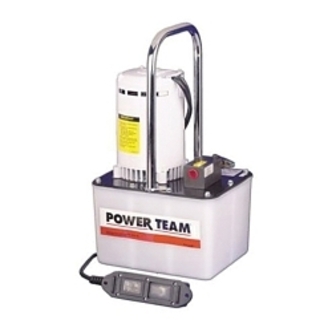

Power Team SPX PE174M-50-220

Power Team PE174M-50-220 Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 375 cu-in Reservoir, 0 to 10000 psi Pressure

Invoice description: Pump E 4w Alumnm 220v 50 Hz S/d Pump E 4w Alumnm 220v 50hz S/d

UPC: 662536292924
UNSPSC: 40151533
Manufacturer PN: PE174M-50-220
$5,494.19 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Hydraulic Pump, Portable, Series: PE17, 2 Stage, 375 cu-in Reservoir, 1/2 hp, 0 to 10000 psi Pressure, 220 VAC, 10 A, 50 Hz Frequency, 3450 rpm Speed, 9-1/4 in Overall Length, 11-3/8 in Overall Width, 18-1/2 in Overall Height

  • Features

  • For use with single acting or double acting cylinders
  • For intermittent duty, starts under full load
  • Low amperage draw, small generators and low amperage circuits can be used as power source
  • Extremely quiet noise level

Specifications

ApplicationMaintenance and Construction Applications
Amperage Rating10 A
Frequency Rating50 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height18-1/2 in
Overall Length9-1/4 in
Overall Width11-3/8 in
Pressure Rating0 to 10000 psi
Reservoir Capacity375 cu-in
SeriesPE17
Speed3450 rpm
TypePortable
Voltage Rating220 VAC

Additional Information

Standards/ApprovalCSA File No. LR19814

Documents
