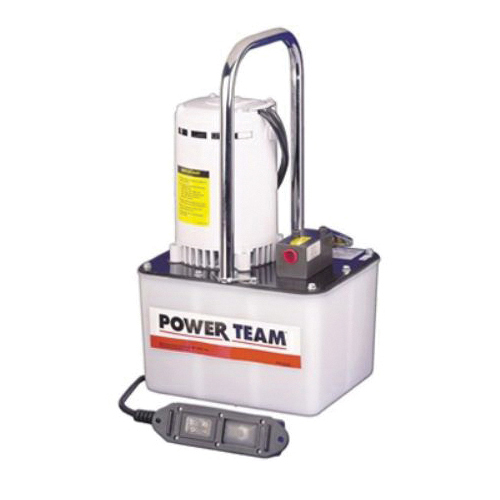

Power Team SPX PE174M

Power Team Electric/Hydraulic Pump, 2-Speed Portable, Series: PE17, 375 cu-in Reservoir, 1/2 hp, 16/20/190/290 cu-in/min Flow Rate, 10000 psi Pressure, 110/115 VAC, 10 A, 50/60 Hz Frequency, 3450 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 18-1/8 in Overall Height

• Features

• For use with single-acting or double acting cylinders at operating pressures to 10000 psi (700 bar)
• For intermittent duty, starts under full load
• Equipped with 1/2 hp (0.37 kW), 3450 rpm, single phase, thermal protected induction motor, 10 ft remote control cord
• Low amperage draw, small generators and low amperage circuits can be used as power source
• Extremely quiet noise level 67 to 81 dBA
• 16 cu-in/min at 10000 psi, 20 cu-in/min at 5000 psi, 190 cu-in/min at 100 psi, 290 cu-in/min at 0 psi flow rate

Specifications

Documents

• Owners/user Manual

• Line Drawing

• Catalog
