Power Team SPX PE172SM

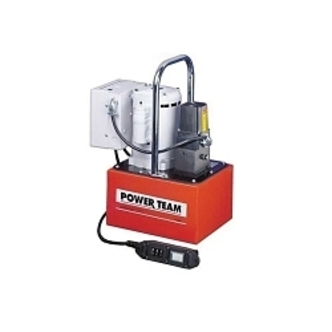

Power Team PE172SM Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 375 cu-in Reservoir, 16 cu-in/min Flow Rate, 0 to 10000 psi Pressure
Invoice description:
Pumpe 17 Cu In/min 110/1 15v 50/60hz Pumpe 17 Cu In/min 110/115v 50/60hz
UPC: 662536312882
UNSPSC:
40151533
Manufacturer PN: PE172SM
$6,952.21 EA
Factory OrderEstimated to ship in 7 days
Power Team Electric Hydraulic Pump, Portable, Series: PE17, 2 Stage, 375 cu-in Reservoir, 1/2 hp, 16 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 10 A, 50/60 Hz Frequency, 3450 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 18-1/8 in Overall Height
Features
- For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
- For intermittent duty, starts under full load
- Equipped with 1/2 hp (0.37 kW), 3450 rpm, single phase, thermal protected induction motor, 10 ft remote control cord (PE172S has 25 ft (7.6 m) cord)
- Low amperage draw, small generators and low amperage circuits can be used as power source
- Extremely quiet noise level
Specifications
ApplicationMaintenance and Construction Applications
Amperage Rating10 A
Flow Rate16 cu-in/min
Frequency Rating50/60 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height18-1/8 in
Overall Length11-1/2 in
Overall Width9-1/2 in
Pressure Rating0 to 10000 psi
Reservoir Capacity375 cu-in
SeriesPE17
Speed3450 rpm
TypePortable
Voltage Rating110/115 VAC
Additional Information
Standards/ApprovalCSA File No. LR19814
Specification Sheet
