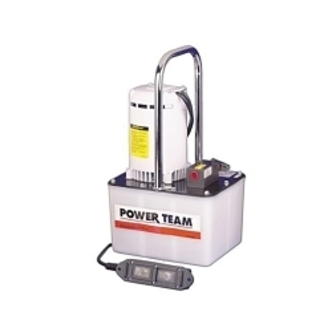

Power Team SPX PE172S

Power Team PE172S Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 295 cu-in Reservoir, 16 cu-in/min Flow Rate, 0 to 10000 psi Pressure

Invoice description: Pumpe 17 Cu In/min 110/1 15v 50/60hz Pumpe 17 Cu In/min 110/115v 50/60hz

UPC: 662536312875
UNSPSC: 40151533
Manufacturer PN: PE172S
$6,422.25 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Electric Hydraulic Pump, Portable, Series: PE17, 2 Stage, 295 cu-in Reservoir, 1/2 hp, 16 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 10 A, 50/60 Hz Frequency, 3450 rpm Speed, 11-3/8 in Overall Length, 9-1/4 in Overall Width, 18-1/2 in Overall Height

  • Features

  • For use with single or double acting cylinders at operating pressures to 10000 psi (700 bar)
  • For intermittent duty, starts under full load
  • Equipped with 1/2 hp (0.37 kW), 3450 rpm, single phase, thermal protected induction motor, 10 ft remote control cord (PE172S has 25 ft (7.6 m) cord)
  • Low amperage draw, small generators and low amperage circuits can be used as power source
  • Extremely quiet noise level

Specifications

ApplicationMaintenance and Construction Applications
Amperage Rating10 A
Flow Rate16 cu-in/min
Frequency Rating50/60 Hz
Horsepower1/2 hp
Number of Stages2
Overall Height18-1/2 in
Overall Length11-3/8 in
Overall Width9-1/4 in
Pressure Rating0 to 10000 psi
Reservoir Capacity295 cu-in
SeriesPE17
Speed3450 rpm
TypePortable
Voltage Rating110/115 VAC

Additional Information

Standards/ApprovalCSA File No. LR19814
