Power Team SPX PE172

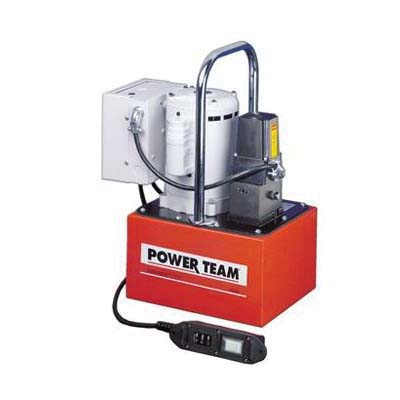

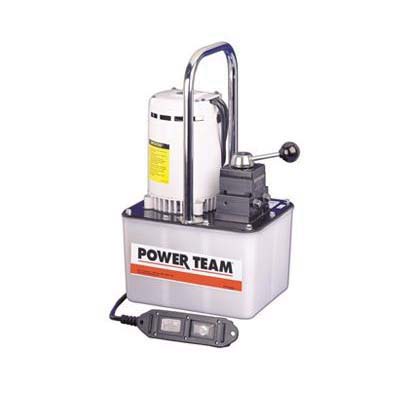

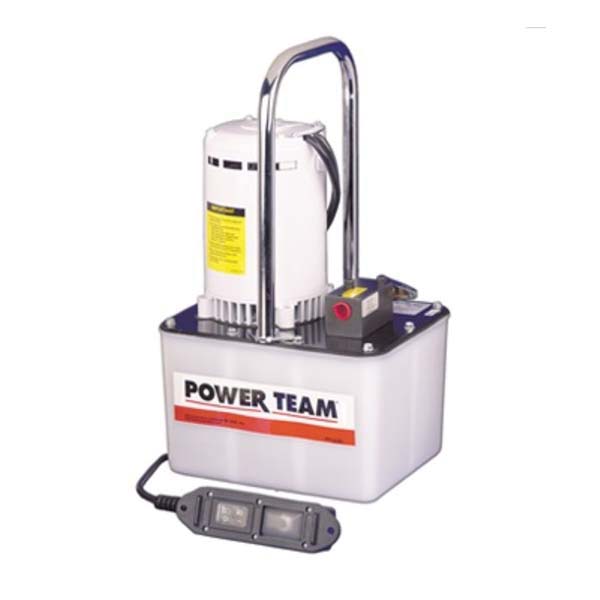

Power Team PE172 Portable Electric Hydraulic Pump, 1/2 hp, 2 gal Reservoir, 17 cu-in/min Flow Rate, 10000 psi Pressure
Invoice description:
Pumpe17 Cu In/min 110/1 15v 50/60 Hz Pumpe17 Cu In/min 110/115v 50/60 Hz
In stock
(2)
Power Team Electric Hydraulic Pump, Portable, Series: PE17, 2 gal Reservoir, 1/2 hp, 17 cu-in/min Flow Rate, 10000 psi Pressure, 110/115 V, 10 A, 50/60 Hz Frequency, 2 Speed, 11-3/8 in Overall Length, 9-1/4 in Overall Width, 18-1/2 in Overall Height
Features
- For use with single acting or double-acting cylinders at operating pressures to 10000 psi
- For intermittent duty, starts under full load
- Equipped with 1/2 hp, 3450 rpm, single-phase, thermal protected induction motor, 10 ft remote control cord
- Low amperage draw, small generators and low amperage circuits can be used as power source
- Extremely quiet noise level
- 2 gal thermoplastic reservoir
- Advance return valve function
- Measured at 3 ft distance all sides
- Actual flow will vary with field conditions
Specifications
ApplicationFor powering single-acting cylinders and portable hydraulic tools, for maintenance and construction applications
Amperage Rating10 A
Flow Rate17 cu-in/min
Frequency Rating50/60 Hz
Horsepower1/2 hp
Overall Height18-1/2 in
Overall Length11-3/8 in
Overall Width9-1/4 in
Pressure Rating10000 psi
Reservoir Capacity2 gal
SeriesPE17
Speed2
TypePortable
Voltage Rating110/115 V
Additional Information
Standards/ApprovalFOR POWERING SINGLE-ACTING CYLINDERS AND PORTABLE HYDRAULIC TOOLS.
Country of OriginUS
