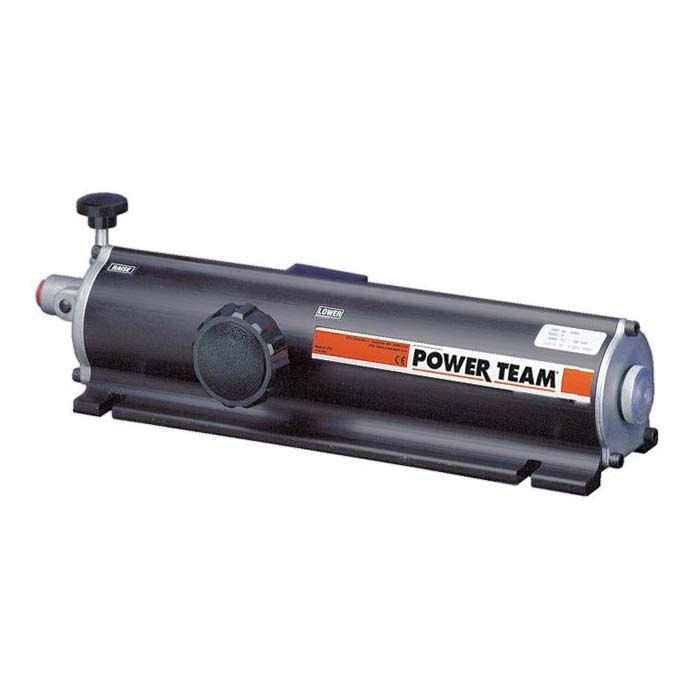

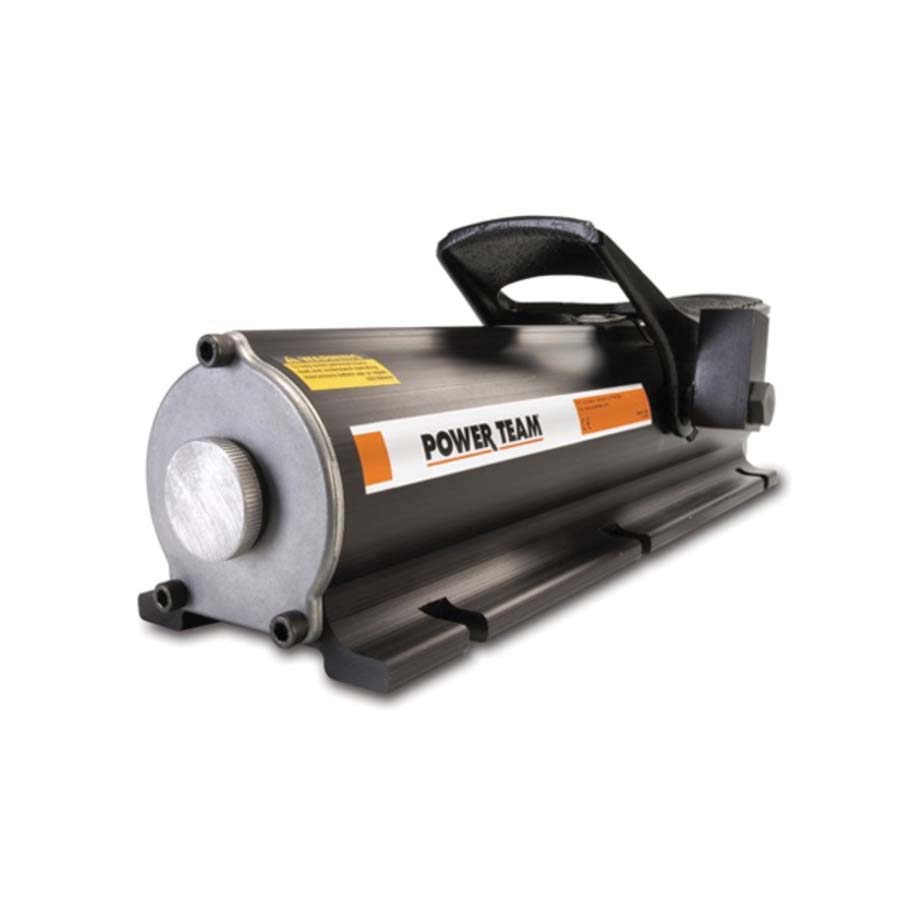

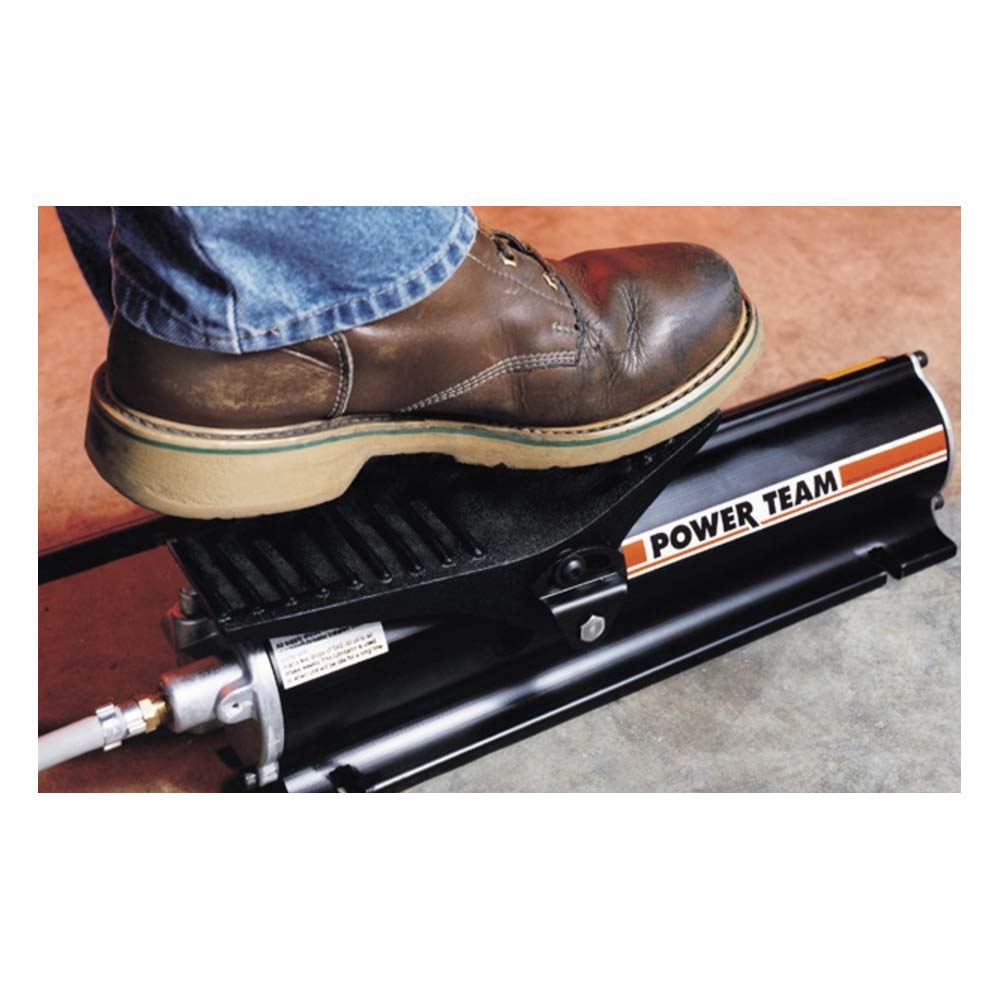

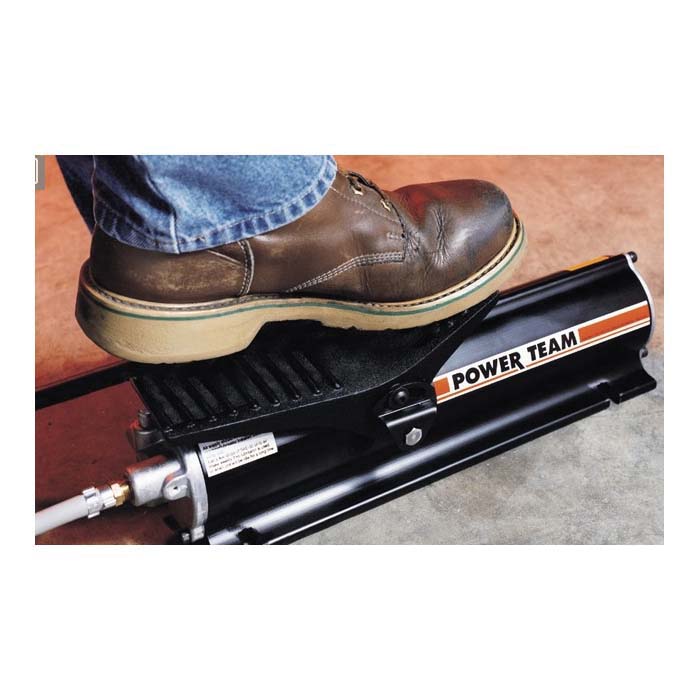

Power Team SPX PA9
Power Team PA9 Single Acting Air Driven Hydraulic Pump, 9 cu-in Air Flow, 3/8 in NPTF Fluid Port
Invoice description:
Pump Air/hydraulic Pump Air/hydraulic
UPC: 662536317979
UNSPSC:
40151533
Manufacturer PN: PA9
$1,444.38 EA
![](/img/factory-order.png)
Estimated to ship in 7 days
Power Team Air Driven Hydraulic Pump, Single Acting, 9 cu-in, 3/8 in NPTF Fluid Port, 33.5 cu-in Oil, 35 cu-in Reservoir, 40 to 120 psi Air, 75 dBA, 16-15/16 in Length, 5-5/16 in Width, 5.63 in Height
Features
- Easier to operate than a hand pump, giving you the speed you need at an affordable price
- Easy and economical to service, not a throw away unit
- Unique bladder design for all-position operation and storage
- Hard-coat anodized aluminum housing
- Oil filler with integral safety relief minimizes chance of damage to reservoir bladder if overfilling occurs
- Use with single acting cylinders
- 10000 psi maximum pressure output
Specifications
ApplicationFor powering cylinders and portable hydraulic tools
Air Flow Rate9 cu-in
Air Pressure40 to 120 psi psi
Fluid Port Size3/8 in NPTF
Height5.63 in in
Length16-15/16 in in
Oil Capacity33.5 cu-in
Reservoir Capacity35 cu-in
Sound Level75 dBA dBA
TypeSingle Acting
Width5-5/16 in in
