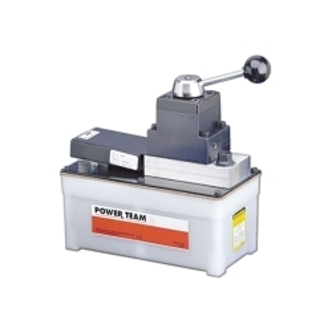

Power Team SPX PA50

Power Team PA50 1-Speed Air Driven Hydraulic Pump, 28 cu-in/min at 5000 psi Oil Displacement Rating, 3/8 in FNPT Fluid Port

UPC: 662536001434
UNSPSC:
Manufacturer PN: PA50
$2,783.48 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Pump, 1-Speed Air Driven, 28 cu-in/min at 5000 psi Oil Displacement, 3/8 in FNPT Fluid Port, 105 cu-in Oil, 40 to 120 psi Air, 9-1/2 in Length, 5 in Width, 7-3/4 in Height

  • Features

  • Serviceable air motor for economical repair
  • Air inlet filter protects motor
  • Filter in outlet port protects against contaminated systems
  • Assorted reservoirs to suit your applications requirements
  • Base model pump with high density polyethylene reservoir

Specifications

ApplicationFor use with single acting cylinder
Air Pressure40 to 120 psi
Fluid Port Size3/8 in FNPT
Height7-3/4 in
Length9-1/2 in
Oil Capacity105 cu-in
Oil Displacement Rating28 cu-in/min at 5000 psi
Type1-Speed Air Driven
Width5 in
