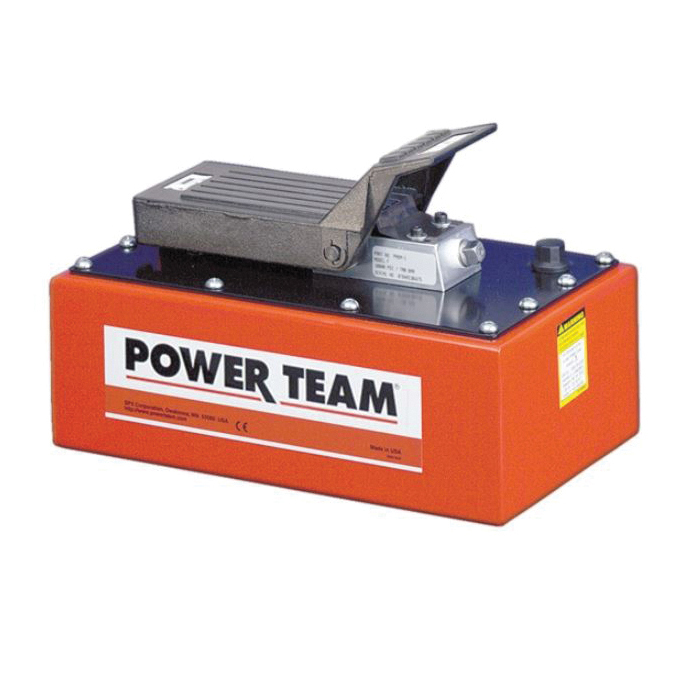

Power Team SPX PA6M-1

Power Team PA6M-1 1-Speed Hydraulic Air Pump, 6 cu-in/min Air Flow, 3/8 in NPTF Fluid Port

UNSPSC:
Manufacturer PN: PA6M-1
$2,939.83 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Air Pump, 1-Speed, Series: PA6, 6 cu-in/min Air Flow, 3/8 in NPTF Fluid Port, 185 cu-in Oil, 1 gal Reservoir, 40 to 120 psi Air, 85 dBA Sound Level, 12-5/8 in Length, 7-3/8 in Width, 7-7/8 in Height

  • Features

  • Compact, lightweight and portable
  • The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment
  • Operate at 40 to 100 psi shop air pressure at the pump
  • Serviceable pump motor is not a "throw away", providing economical repair
  • Permanently vented reservoir cap
  • Internal relief valve protects circuit components, air inlet filter protects motor

Specifications

ApplicationFor driving single acting cylinders
Air Flow Rate6 cu-in/min
Air Pressure40 to 120 psi
Fluid Port Size3/8 in NPTF
Height7-7/8 in
Length12-5/8 in
Oil Capacity185 cu-in
Reservoir Capacity1 gal
SeriesPA6
Sound Level85 dBA
Type1-Speed
Width7-3/8 in
