Power Team SPX PA6A

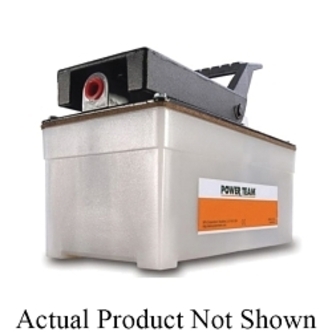

Power Team PA6A 1-Speed Air Driven Hydraulic Pump, 6 cu-in/min Oil Displacement Rating, 3/8 in FNPT Fluid Port
Invoice description:
Pump Air/hyd 6 Cu In/min Cap 105 Cu In Pump Air/hyd 6 Cu In/min Cap 105 Cu In
UPC: 662536203685
UNSPSC:
40151533
Manufacturer PN: PA6A
$1,845.82 EA
Factory OrderEstimated to ship in 7 days
Power Team Hydraulic Pump, 1-Speed Air Driven, Series: PA6, 6 cu-in/min Oil Displacement, 3/8 in FNPT Fluid Port, 105 cu-in Oil, 40 to 120 psi Air, 85 dBA at 10000 psi Sound Level, 9-1/2 in Length, 5 in Width, 7-3/4 in Height
Features
- Compact, lightweight and portable single speed pumps for driving single acting cylinders
- The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment
- Serviceable pump motor is not a throw away, providing economical repair
- Permanently vented reservoir cap
- Internal relief valve protects circuit components, air inlet filter protects motor
- Base model pump with high density polyethylene reservoir with externally adjustable relief valve
Specifications
Air Pressure40 to 120 psi
Fluid Port Size3/8 in FNPT
Height7-3/4 in
Length9-1/2 in
Oil Capacity105 cu-in
Oil Displacement Rating6 cu-in/min
SeriesPA6
Sound Level85 dBA at 10000 psi
Type1-Speed Air Driven
Width5 in
Specification Sheet
