Power Team SPX P300

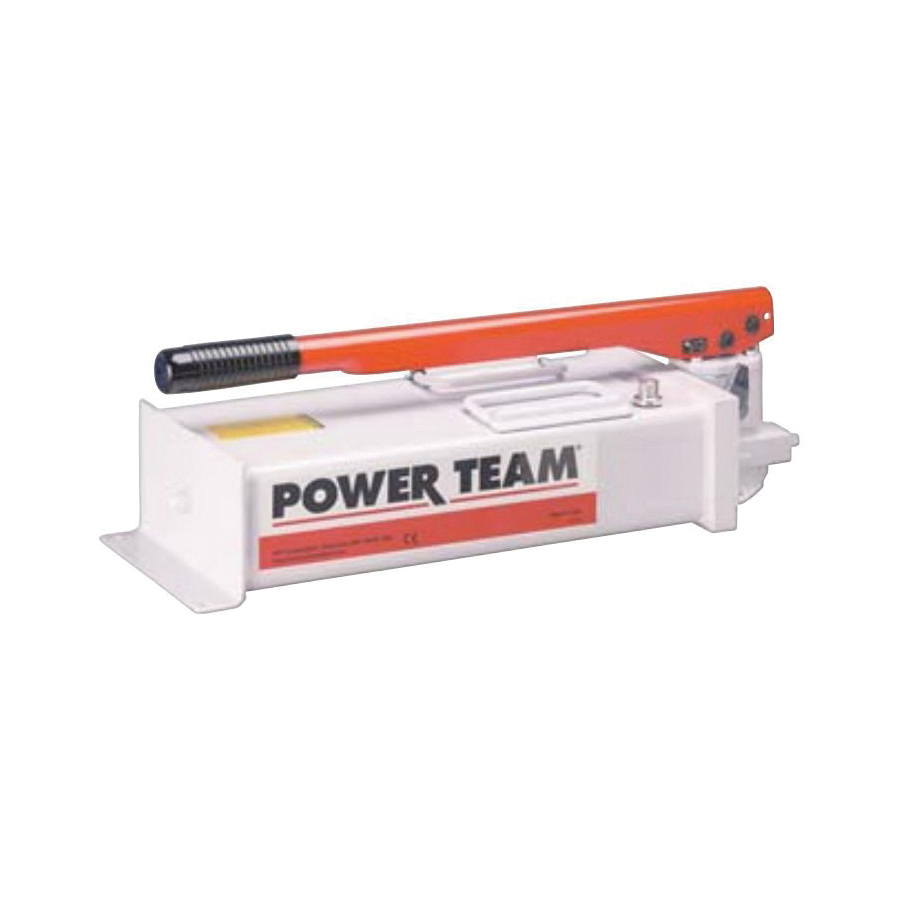

Power Team P300 2-Speed Single Acting Hand Pump, 1.5 gal Tank, 310 cu-in Pump

UNSPSC:
Manufacturer PN: P300
$2,584.69 EA
Factory Order
Estimated to ship in 7 days
QTY:

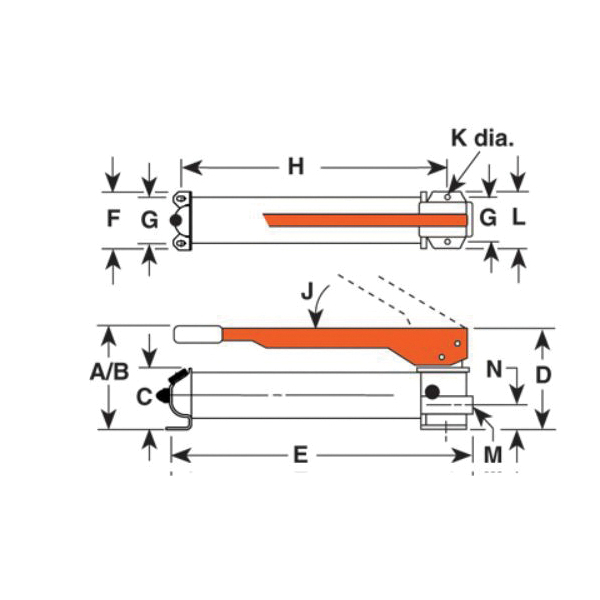

Power Team Hand Pump, 2-Speed Single Acting, 1.5 gal Tank, 310 cu-in Pump, 325 to 10000 psi Pressure, 3/8 in NPTF Port, 22-5/8 in Overall Length, 8-1/2 in Overall Width, 6-7/8 in Overall Height

  • Features

  • Rugged all metal construction for strength and durability that wont burn through in welding environments
  • Heavy duty, formed metal handle provides less flex and less operator fatigue than round or composite handles
  • Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position
  • Fill cap seal acts as safety valve to prevent over-pressurizing of reservoir
  • Relief valve inboard of check valve prevents loads from drifting down
  • Large valve knob gives added control for slowly metering loads down

Specifications

ApplicationFor applications where there is little or no free travel
Overall Height6-7/8 in
Overall Length22-5/8 in
Overall Width8-1/2 in
Port Size3/8 in NPTF
Pressure Rating325 to 10000 psi
Pump Capacity310 cu-in
Tank Capacity1.5 gal
Type2-Speed Single Acting
