Power Team SPX HT200

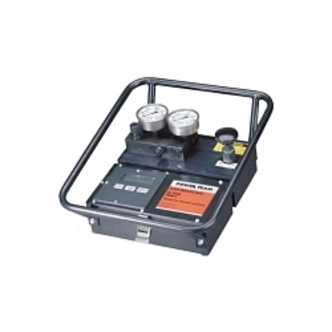

Power Team HT200 Electromagnetic Flow Measuring System In-Line Hydraulic Tester, 5 to 40 gpm Low, 25 to 200 gpm High, 5000 psi Pressure, 1-1/2 in Port, 5 % Accuracy
Factory Order
Power Team In-Line Hydraulic Tester, Electromagnetic Flow Measuring System, Series: HT Series, 5 to 40 gpm Low, 25 to 200 gpm High Flow Measuring, 5000 psi Pressure, 120 deg F, 1-1/2 in Port, 5 % Accuracy, 15-7/8 in H x 13-1/4 in W x 6-3/4 in D Dimensions
Features
- Accurately measure oil flow, pressure and temperature on in-plant equipment, forklifts, machine tools and more
- Temperature and flow readings are in metric and English, accurate to within +/-2% of full scale
- Dual pressure gauges for high and low pressure readings, low pressure gauge is automatically shut off and protected as pressure rises beyond its maximum reading
- Automatic pressure compensating feature lets you increase flow without affecting pressure setting
- Reverse flow through tester will not cause damage, replaceable safety disc ruptures if pressure exceeds upper limit
- Solid state voltage regulator eliminates errors caused by voltage change during testing
Specifications
Accuracy5 %
Dimensions15-7/8 in H x 13-1/4 in W x 6-3/4 in D
Flow Measuring Range5 to 40 gpm Low, 25 to 200 gpm High
Port Size1-1/2 in
Pressure Rating5000 psi
SeriesHT Series
Temperature Rating120 deg F
TypeElectromagnetic Flow Measuring System
Instruction/installation Manual
