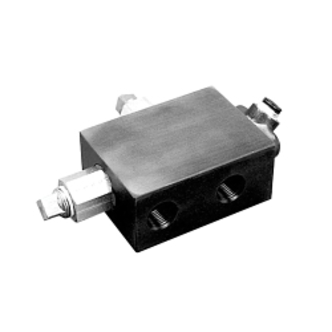

Power Team SPX 9581

Power Team 9581 1-Way In-Line Automatic Check Valve, 3/8 in FNPT Port, 10000 psi Pressure, Steel Body

Invoice description: Check Valve Po 3/8 Nptf Ports Check Valve Po 3/8 Nptf Ports

UPC: 662536127721
UNSPSC: 40141608
Manufacturer PN: 9581
$1,146.06 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Check Valve, 1-Way In-Line Automatic, 3/8 in FNPT Port, 10000 psi Pressure, Media: Oil, Pilot Actuation, Steel Body, 5.1 in L x 1.5 in W x 4.1 in H Dimensions

  • Features

  • Flow is blocked in opposite direction until pilot oil pressure is applied
  • This prevents the loss of pressure if the valve is inadvertently shifted or the pump line is broken
  • Minimum cracking pressure is 60 psi
  • Required pilot pressure is approximately 16% of checked system pressure
  • Permits free flow of fluid in one direction

Specifications

ApplicationFor use with open or tandem center valves, single and double acting cylinder
Actuation TypePilot
Body MaterialSteel
Dimensions5.1 in L x 1.5 in W x 4.1 in H
MediaOil
Port Size3/8 in FNPT
Pressure Rating10000 psi
Type1-Way In-Line Automatic
