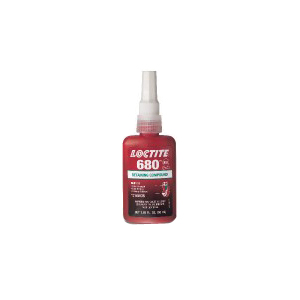

Loctite LOC 1835201

Loctite 1835201 680 1-Part High Strength Retaining Compound, 50 mL Bottle, Liquid, Green, 1.1000000000000001

Invoice description: Compound Retaining 50ml Slip Fit/high Strgth

UPC: 079340006843

UNSPSC: 31201705

Manufacturer PN: 1835201

^$66.60 EA

Factory Order
Estimated to ship in 16 days

enlarge

Product Overview

Loctite Retaining Compound, 1-Part High Strength, Series: 680, Bottle, 50 mL, Composition: Dimethacrylate Ester, Methacrylate Monomer, 2-Hydroxyethyl Meth Acrylate Polyurethane Methacrylate Resin, Acrylic Acid, Hydroxyalkyl Meth Acrylate Polyglycol Dimethacrylate, Methacrylic Acid, Cumene Hydroperoxide, Liquid, 10 min Setting Time, 24 hr Curing, Green, Characteristic, -65 to 355 deg F, 1.1 Specific Gravity, 199.94 deg F Flash, 4.74 g/L VOC, 4000 cPs Viscosity Rating, Applicable Materials: Aluminum, Copper, Magnesium Alloy and Steel, 4000 psi Shear Strength

Features
Loctite 680 retaining compound is a high strength, high viscosity room temperature curing adhesive used to join fitted cylindrical parts
It fixtures in 10 minutes and provides a shear strength of 4000 psi
Capable of filling diametral gaps up to 0.015 in
Loctite 680 allows relaxed machining tolerances, and replaces clamp rings, set screws, and snap rings
Gives best resistance to dynamic, axial and radial loads
Fills 0.015 gap

Specifications

ApplicationFor retaining shafts, gears, pulleys and similar cylindrical parts

Applicable MaterialsAluminum, Copper, Magnesium Alloy and Steel

ColorGreen

CompositionDimethacrylate Ester, Methacrylate Monomer, 2-Hydroxyethyl Meth Acrylate Polyurethane Methacrylate Resin, Acrylic Acid, Hydroxyalkyl Meth Acrylate Polyglycol Dimethacrylate, Methacrylic Acid, Cumene Hydroperoxide

Container Size50 mL

Container TypeBottle

Curing Time24 hr

Flash Point199.94 deg F

FormLiquid

Odor/ScentCharacteristic

Series680

Setting Time10 min

Shear Strength4000 psi

Specific Gravity1.1

Temperature Rating-65 to 355 deg F

Type1-Part High Strength
