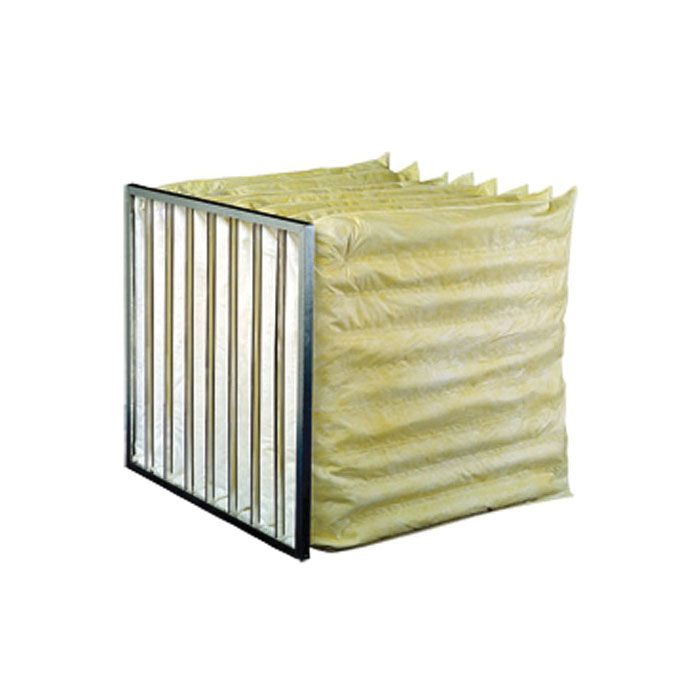

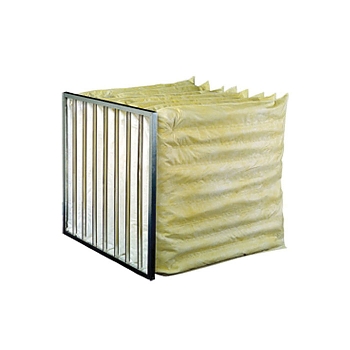

Koch Filter KOCH 206-106-130

Koch Filter 206-106-130 Multi-SAK Series S High Efficiency Extended Surface Pocket Bag Filter, 24 in H x 24 in W x 30 in D, MERV 12 MERV, Domestic

Invoice description: Filter 24x24x30 Bag 65%

UNSPSC: 40161505
Manufacturer PN: 206-106-130
$88.32 EA
In stock (9)
QTY:


Koch Filter Extended Surface Pocket Bag Filter, High Efficiency, Series: Multi-SAK Series S, 24 in Width, 30 in D, 24 in Height, MERV: MERV 12, 1500 to 2500 cfm, 60 to 65% Efficiency, 6 Pockets, 0.34 in WG Initial Resistance, 1-1/2 in WG Final Resistance, Synthetic Fiber Media, White, Domestic

  • Features

  • Low pressure drop/extended service life
  • Roll-formed safe-edged galvanized steel header
  • Thermoplastic adhesive seals stitch lines against air bypass
  • Aluminum cross supports provide rigidity and durability
  • Aerodynamic pocket design allows for total media utilization
  • Unaffected by moisture and humidity
  • Media color-coded by efficiency
  • Dual-layered high performance 100% synthetic fiber media
  • 68 sq-ft media

Specifications

ApplicationHospitals, Automotive Plants, Office Buildings, Universities, Pharmaceutical Facilities and Sports Arenas
ColorWhite
Depth30 in
Domestic/ImportDomestic
Efficiency60 to 65%
Final Resistance1-1/2 in WG
Flow Rate1500 to 2500 cfm
Height24 in
Initial Resistance0.34 in WG
Media MaterialSynthetic Fiber
MERV12
Number of Pockets6
SeriesMulti-SAK Series S
TypeHigh Efficiency
Width24 in

Additional Information

Standards/ApprovalASHRAE Approved|UL Listed|NAFA Standard|USGBC Member|Energy Star Certified
Country of OriginUS
