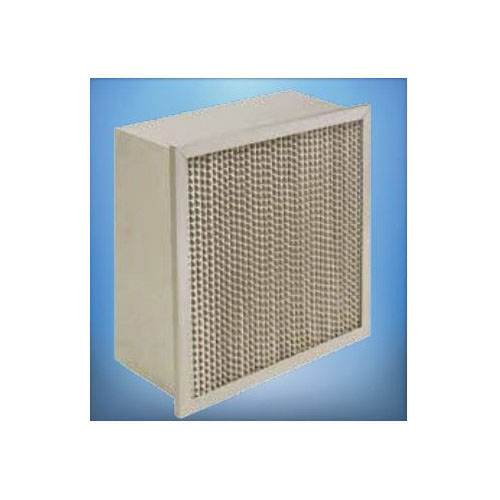

Koch Filter KOCH 110-730-002
Koch Filter 110-730-002 Multi-Cell 95 Medium/High Efficiency Extended Surface Air Filter, 12 in H x 24 in W x 12 in D, MERV 14 MERV, 180 deg F
Invoice description:
Filter 12wx24hx12d Ridgi D 90-95% Single Header M
In stock
(2)
Koch Filter Extended Surface Air Filter, Medium/High Efficiency, Series: Multi-Cell 95, 24 in Width, 12 in D, 12 in Height, MERV: MERV 14, 1000 cfm, 180 deg F, FM Style, 90 to 95% Efficiency, 0.55 in WG Initial Resistance, 1 in WG Final Resistance, Glass Fiber Media, White
Features
- Cell sides are constructed with heavy duty galvanized steel
- Filter media is produced from glass fibers and is formed into a durable, graded density micro-glass paper mat
- Corrugated aluminum separators provide proper media spacing and additional strength to the media pack
- Each separator is folded on the leading edge to make it twice as durable and to prevent damage to the filter media
- Media to frame sealant is a specialized thermoplastic hot melt adhesive
- Adhesive sealants have been engineered specifically for superior durability in high efficiency air filtration applications
- Header location - single header air entry side
- Multi-Cell filters are capable of operation up to 125% of rated face velocity
- 63 sq-ft media
Specifications
ApplicationFor variable air volume systems and HVAC applications
ColorWhite
Depth12 in
Efficiency90 to 95%
Final Resistance1 in WG
Flow Rate1000 cfm
Frame TypeFM Style
Height12 in
Initial Resistance0.55 in WG
Media MaterialGlass Fiber
MERV14
SeriesMulti-Cell 95
Temperature Rating180 deg F
TypeMedium/High Efficiency
Width24 in
Additional Information
Standards/ApprovalASHRAE 52.2-1999|UL 900 Class 1
