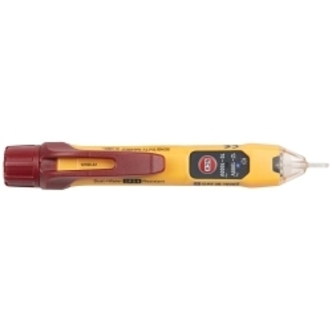

Klein KLN NCVT2PKIT

Klein NCVT2PKIT Dual Range Non-Contact Voltage and Receptacle Tester, 48 to 1000 VAC/12 to 1000 VAC Max Measurable

Invoice description: Tester Voltage 12-1000v Dual Range Ncvt Kit

UPC: 092644693274
UNSPSC: 41113637
Manufacturer PN: NCVT2PKIT
$43.98 EA
Factory Order
Estimated to ship in 7 days
QTY:


Klein Voltage and Receptacle Tester, Dual Range Non-Contact, 48 to 1000 VAC/12 to 1000 VAC Maximum Measurable Voltage, (2) AAA Battery, 50 to 500 Hz Frequency, IP54 Enclosure, Polycarbonate, 5.8 in L x 0.9 in W x 1.1 in H Dimensions

  • Features

  • Kit contains a non-contact voltage tester and receptacle tester
  • Dual range NCVT-2P automatically detects and indicates low voltage range and standard voltage (48 to 1000 VAC)
  • NCVT-2P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
  • NCVT-2P is a lightweight, compact tool with pocket clip for convenient storage and quick access
  • CAT IV 1000 V rating provides expanded operation and protection
  • Screw thread battery cap with O-ring ensures protection against dust and water ingress for the NCVT-2P
  • Receptacle tester is designed to detect the most common wiring problems in standard receptacles
  • Conditions the receptacle tester indicates - wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

Specifications

ApplicationFor use to measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC micro amp, capacitance, duty cycle, diode test and continuity via test leads and temperature with thermocouple, detects and Indicates low voltage and standard voltage and detects most common wiring problems in standard receptacles
Battery(2) AAA
Dimensions5.8 in L x 0.9 in W x 1.1 in H
Enclosure TypeIP54
Frequency Rating50 to 500 Hz
MaterialPolycarbonate
Maximum Measurable Voltage48 to 1000 VAC/12 to 1000 VAC
TypeDual Range Non-Contact

Additional Information

Standards/ApprovalCAT III 600 V Class 2|CE Certified|CVT-2P CAT IV 1
Country of OriginCN
