JET JET JLH-75WO-5

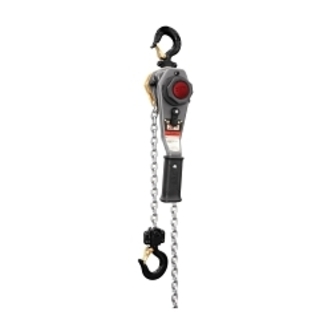

JET JT9-376100 JLH Lever Chain Hoist, 0.75 ton Load, 5 ft H Lifting, 63.88 lb Rated, 0.93 in Hook Opening

Invoice description: Hoist Lever 3/4t 5'lift 376100

UPC: 731325472646
UNSPSC: 24101602
Manufacturer PN: JT9-376100
$642.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


JET, JT9-376100, Lever Chain Hoist, Series: JLH, 0.75 ton Load, 5 ft Lifting Height, 11.02 in Minimum Between Hooks, 0.93 in Hook Opening, 63.88 lb Pull to Lift, 10-1/4 in Lever Length, Steel Chain, Weston Style Double Ratchet Pawl Brake, Lever Handle, 5.67 in W Dimensions

  • Features

  • Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Enhanced ergonomic grip allows for greater operator control and increased comfort
  • Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat treated load plates
  • Industrial rated alloy steel hooks rotate 360 deg for easy rigging
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
  • Fused brake system and offset handle for safety
  • Heavy duty use

Specifications

ApplicationFor confined areas and low headroom applications
Brake TypeWeston Style Double Ratchet Pawl
Chain MaterialSteel
Dimensions5.67 in W
Handle TypeLever
Hook Opening0.93 in
Lever Length10-1/4 in
Lifting Height5 ft
Load Capacity0.75 ton
Minimum Between Hooks11.02 in
Pull to Lift Rated Load63.88 lb
SeriesJLH

Additional Information

WarrantyLifetime
Standards/ApprovalPROP65: This product can expose you to chemicals i
Country of OriginCN
