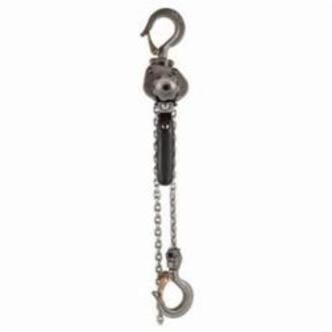

JET JET JLH-25-10

JET, JT9-181210, Lever Hoist, Compact, Series: JLH, 0.25 ton Load, 10 ft Lifting Height, 7-9/10 in Minimum Between Hooks, 0.83 in Hook Opening, 45 lb Pull to Lift, 5.71 in Lever Length, 1 Reeving, Dual Pawl Weston Brake, 3.43 in W Dimensions

• Features

• Weston style dual pawl brake system- dual pawl design increases safety by splitting the load to opposite sides of the ratchet gear for greater load security
• Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
• Hooks slowly stretch to indicate an overload situation increasing jobsite safety
• Carrying case- included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist
• Work to weight ratio at 3.5 pounds, the 1/4 ton JLH compact lever hoist can pull or hold a load more than 140 times its weight
• Compact power- A 1/4 ton of pulling power that fits in the palm of your hand
• Geared drive train- JETs exclusive five gear drive train requires less force to lift or secure a load
• Aluminum housing- durable, impact resistant, aluminum alloy housings makes the JLH compact lever hoist one of the lightest hoists on the market
• Grade 100 load chain- corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
• Cast steel safety latches increased durability with heavy duty safety latches secured with allen screws and lock nuts

Specifications

Documents

• Specification Sheet
