Iscar ISCAR 2800097

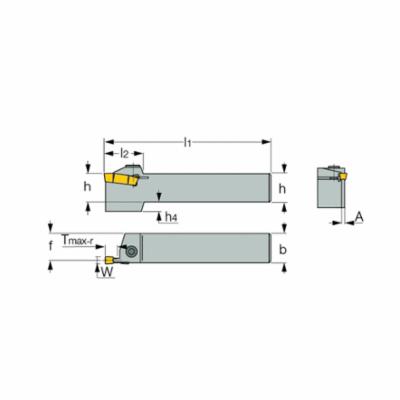

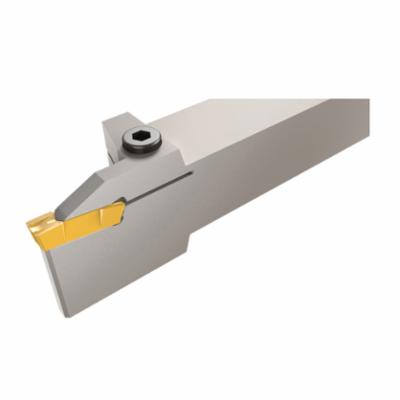

Iscar 2800097 CUT-GRIP Long Pocket Indexable Grooving Toolholder, Insert Compatibility: GDM.. 808, GI.. 8.., 0.232 in Insert Seat, Left Hand Cutting, 0.26 in W Min Groove, External, 1 in H x 1 in W Shank, GHDL Toolholder
Invoice description:
Ghdl 25.4-8
Factory Order
Iscar Indexable Grooving Toolholder, Long Pocket, Series: CUT-GRIP, Insert Compatibility: GDM.. 808, GI.. 8.., GHDL Toolholder, 1.6 in Head Length, 6 in Overall Length, 1 in H x 1 in W Shank, 0.232 in Insert Seat, Left Hand Cutting Direction, 0.26 in Minimum Groove Width, 1 in Maximum Depth of Cut, Socket Head Cap Screw, External
Specifications
ApplicationTurning, Grooving and Parting
Cutting DirectionLeft Hand
Head Length1.6 in
Insert CompatibilityGDM.. 808, GI.. 8..
Insert Seat Size0.232 in
Internal or ExternalExternal
Maximum Depth of Cut1 in
Minimum Groove Width0.26 in
Overall Length6 in
Screw TypeSocket Head Cap
SeriesCUT-GRIP
Shank Size1 in H x 1 in W
Toolholder TypeGHDL
TypeLong Pocket
Additional Information
Country of OriginIL
