Midland Industries MIDM 6802NWO10

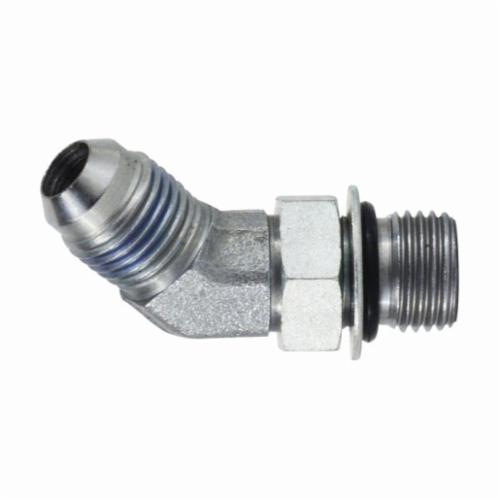

Midland Industries 6802NWO10 Hydraulic Elbow, 7/8-14 Nominal, Male JIC Flare x Male ORB, Steel

Invoice description: Elbow 7/8x7/8 St Thd 45 Elbow 7/8x7/8 St Thd 45

UNSPSC: 27121705

Manufacturer PN: 6802NWO10

^$7.75 EA

Factory Order
Estimated to ship in 7 days

Midland Industries Hydraulic Elbow, 7/8-14 Nominal, Male JIC Flare x Male ORB, 45 deg, 2900 psi, Steel

Features
O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
