HARRINGTON HARR LB008 3/4T 20

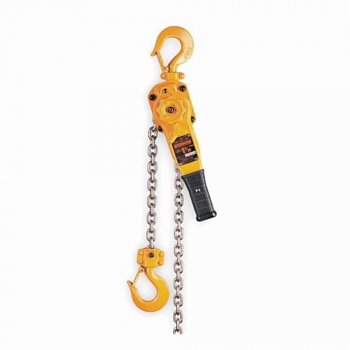

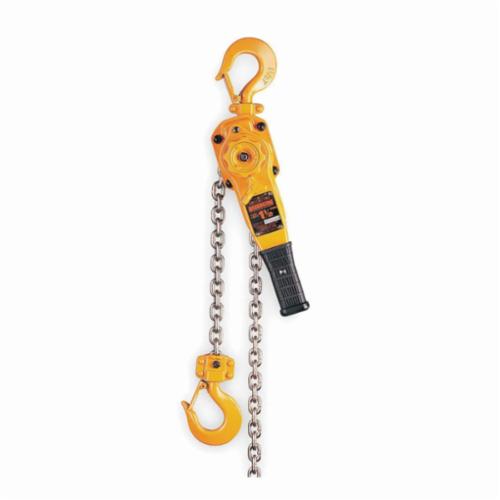

HARRINGTON LB008-20 Lever Chain Hoist, 0.75 ton Load, 20 ft H Lifting, 54 lb Rated, 21 ft L Chain, 40/43 in Hook Opening

Invoice description: Hoist Lever 3/4 Ton 20' Chain

UNSPSC: 24101602
Manufacturer PN: LB008-20
$934.04 EA
Factory Order
Estimated to ship in 7 days
QTY:


HARRINGTON Lever Chain Hoist, Series: LB Series, 0.75 ton Load, 20 ft Lifting Height, 11 in Minimum Between Hooks, 40/43 in Hook Opening, 54 lb Pull to Lift, 9-39/64 in Lever Length, 21 ft Chain Length, Nickel Plated Chain, 1 Reeving, Weston Brake, Manual Handle, 5.7 x 4.7 in Dimensions

  • Features

  • Rugged, all-steel construction that actually, Weighs less than comparable aluminum models
  • Get positive braking action with Weston-style load brake incorporating two moisture resistant brake pads with four braking surfaces
  • Enjoy protection against dirt and moisture with a totally enclosed brake mechanism
  • Ensure long life with machined, heat treated, split load double reduction gears
  • Operate in close quarters with short steel handle and 15-degree recovery strokes
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
  • Equipped with standard rubber grip for non-slip operation
  • Powder coated
  • 11 in Headroom

Specifications

Brake TypeWeston
Chain Length21 ft
Chain MaterialNickel Plated
Dimensions5.7 x 4.7 in
Handle TypeManual
Hook Opening40/43 in
Lever Length9-39/64 in
Lifting Height20 ft
Load Capacity0.75 ton
Minimum Between Hooks11 in
Pull to Lift Rated Load54 lb
Reeving1
SeriesLB Series

Additional Information

IncludesSafety Latch Hooks
Standards/ApprovalANSI/ASME B30.21
Country of OriginJP
