Hannibal HANN 64407

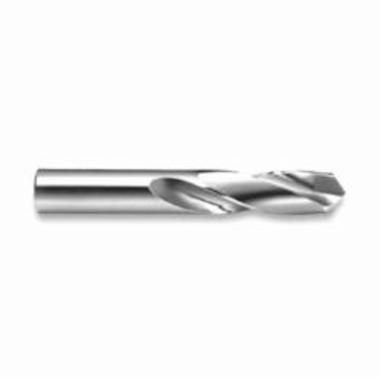

Hannibal 64407 640 Material Specific Stub Length Drill, G Drill - Letter, 0.261 in Drill - Decimal Inch, Tool Steel, Uncoated
In stock
(8)
Hannibal Stub Length Drill, Material Specific, Series: 640, Imperial, G Drill - Letter, 0.261 in Drill - Decimal Inch, 2-5/8 in Overall Length, 1-7/16 in Cutting Depth, 2 Flutes, Spiral Flute, 1-7/16 in Flute Length, 1/4 in Shank, Straight Shank, 118 deg Point, Standard Point, Right Hand Cutting Direction, Carbide Cutting Edge, Tool Steel, Uncoated, Applicable Materials: Cast Iron and Non-Ferrous Metals
Features
- Carbide tip high temperature brazed to hardened tool steel body
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- Excellent starting drill
- Often used in CNC machining centers
- Short length results in a very rigid and sturdy drill
Specifications
ApplicationFor exact location shallow drilling
Applicable MaterialsCast Iron and Non-Ferrous Metals
Cutting Depth1-7/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.261 in
Drill Size - LetterG
FinishUncoated
Flute Length1-7/16 in
Flute TypeSpiral
MaterialTool Steel
Number of Flutes2
Overall Length2-5/8 in
Point Angle118 deg
Point TypeStandard
Series640
Shank Size1/4 in
Shank TypeStraight
TypeMaterial Specific
