Irwin Hanson HANI 26377

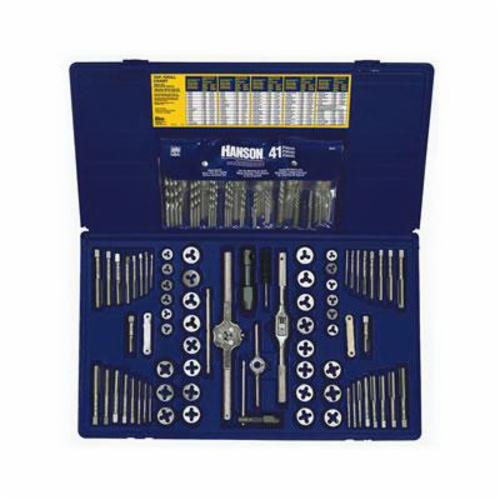

Irwin Hanson 26377 Combination Tap/Hex Die and Drill Bit Deluxe Set, 117 Pieces, #4-40 to 1/2-20 Tap Thread, #4-40 to 1/2-20 Die Thread, #43 to 16 Drill, BSP/NPT/UNC/UNF Thread, Hexagon Fixed Die, Spiral Flute Tap, Plug/Tapered Tap Chamfer

Invoice description: Set Tap & Die Combo 117p C Deluxe W/case

UPC: 024721263773
UNSPSC: 23251800
Manufacturer PN: 26377
$581.16 ST
Factory Order
Estimated to ship in 60 days
QTY:

360 Spin

Irwin Hanson, 26377, Tap/Hex Die and Drill Bit Deluxe Set, Combination, Measurement System: Fractional/Metric, 117 Piece, #4-40 to 1/2-20 Tap, #4-40 to 1/2-20 Die Thread, #43 to 16 Drill, BSP/NPT/UNC/UNF Thread Standard, Hexagon Fixed Die Shape, Spiral Flute Tap, Plug/Tapered Tap Chamfer, High Carbon Steel Tap, Plain Tap, Bright Die, Plastic Case Package Type, Adjustable Die: Yes

  • Features

  • The Irwin Hanson machine screw/fractional/metric tap, die, extractor and drill bit set contains almost every tap, hex die, and drill bit a craftsman will need for maintenance and auto repair work
  • This massive set features tools perfectly crafted for hand-threading
  • Crafted of high carbon steel they provide the accuracy professional craftsmen rely on to get the job done right the first time

Specifications

ApplicationFor auto repair and machinery
Adjustable Die (Yes/No)Yes
Die Finish/CoatingBright
Die MaterialHigh Carbon Steel
Die ShapeHexagon Fixed
Die Thread Size#4-40 to 1/2-20
Drill Finish/CoatingBright
Drill MaterialHigh Carbon Steel
Drill Size#43 to 16
Measurement SystemFractional/Metric
Number of Pieces117
Package TypePlastic Case
Tap Chamfer TypePlug/Tapered
Tap Finish/CoatingPlain
Tap MaterialHigh Carbon Steel
Tap Thread Size#4-40 to 1/2-20
Tap TypeSpiral Flute
Thread StandardBSP/NPT/UNC/UNF
TypeCombination

Additional Information

Includes1112ZR #4-40, 1118 #6-32, 1124 #8-32, 1128ZR #10-24, 1132 #12-24 UNC and 1131 #10-32 UNF Machine Screw Plug Taps, 6112 #4-40, 6118 #6-32, 6124 #8-32, 6128 #10-24, 6132 #12-24 UNC and 6131 #10-32 UNF 5/8 in Hexagon Dies, 1420 1/4-20, 1427 5/16-18, 1434ZR 3
Country of OriginUS
