LEGEND LEGV 113-217

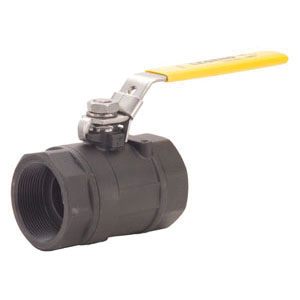

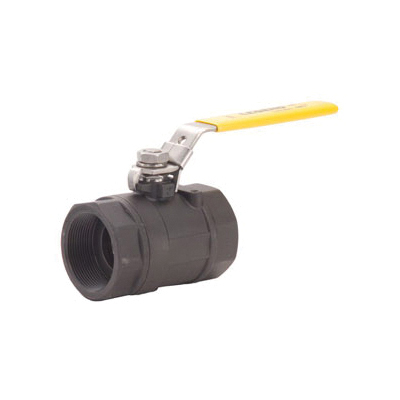

LEGEND 113-217 T-725 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Carbon Steel Body, Large Port, Import
Invoice description:
Ball Valve 2 Piece T-725 Series 1-1/2"
UPC: 662545009063
UNSPSC:
40141607
Manufacturer PN: 113-217
$118.58 EA
Factory OrderEstimated to ship in 7 days
LEGEND Ball Valve, 2-Piece, Series: T-725, 1-1/2 in Nominal, FNPT, 1500 psi CWP, Large Port, Latch-Lock Actuator, Stainless Steel Ball, 4.09 in Inlet to Outlet Length, 3.11 in Top to Inlet Center, Carbon Steel Body, Stainless Steel Stem and Graphite Impregnated RTFE Seat Trim, Import
Features
- Heavy duty 2-piece investment cast body design
- Bottom loaded Blow-out proof stem
- Integral, tapped mounting pad for actuation or panel attachment
- Fiber reinforced graphite impregnated seats maintain their shape in high-pressure service
- 150 psi steam working pressure
Specifications
ApplicationIdeal for Commercial and Industrial Applications
Actuator TypeLatch-Lock
Ball MaterialStainless Steel
Body MaterialCarbon Steel
Domestic/ImportImport
End StyleFNPT
Inlet to Outlet Length4.09 in
Nominal Size1-1/2 in
Port TypeLarge
Pressure Rating1500 psi CWP
SeriesT-725
Top to Inlet Center3.11 in
Trim MaterialStainless Steel Stem and Graphite Impregnated RTFE Seat
Type2-Piece
Additional Information
Warranty5 Years
Standards/ApprovalANSI/ASME B1.20.1|ASTM A216 WCB|Conforms to MSS Standard Practice 110|Federal WWV-35C Type II
Country of OriginTW
