JET JET 101920

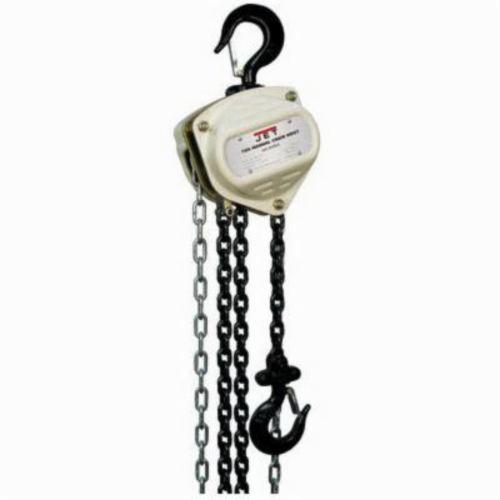

JET JT9-101920 S90 Light Duty Manual Chain Hoist, 1.5 ton Load, 10 ft H Lifting, 14-1/2 in Min Between Hooks, 1.9 in Hook Opening, 84 lb Rated

UPC: 731325218879
UNSPSC:
Manufacturer PN: JT9-101920
$439.40 EA
Factory Order
Estimated to ship in 7 days
QTY:


JET, JT9-101920, Manual Chain Hoist, Light Duty, Series: S90, 1.5 ton Load, 10 ft Lifting Height, 14-1/2 in Minimum Between Hooks, 1.9 in Hook Opening, 84 lb Pull to Lift, Dual Pawl Weston Brake, 6 in W Dimensions

  • Features

  • Weston style dual pawl brake system- double pawl design increases safety
  • Alloy steel hooks- industrial rated hooks rotate 360 deg for easy rigging
  • Hooks slowly stretch to indicate an no-slip situation increasing jobsite safety
  • Needle bearing design- promotes long hoist life with low wear reducing downtime
  • Heat treated load plates- heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
  • Grade 80 load chain- grade 80 black oxide coated load chain for durability
  • All steel construction- impact resistant covers that provide durability and protection
  • Compact design- smaller body and light weight design for low headroom applications and use in confined areas
  • 8 x 24 mm load chain

Specifications

ApplicationIndustrial
Brake TypeDual Pawl Weston
Dimensions6 in W
Hook Opening1.9 in
Lifting Height10 ft
Load Capacity1.5 ton
Minimum Between Hooks14-1/2 in
Pull to Lift Rated Load84 lb
SeriesS90
TypeLight Duty
