GARR GARR 98966

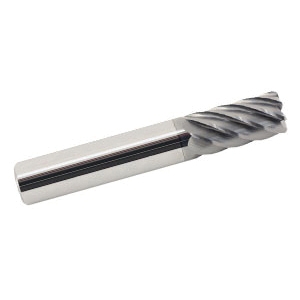

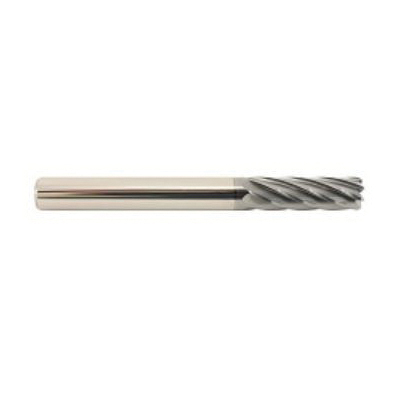

GARR 98966 TMR High Performance Non-Center Cutting Single End Mill, 1 in Dia Cutter, 1/4 in Corner Radius, 4-1/4 in Length of Cut, 11 Flutes, 1 in Dia Shank, 7 in OAL, AlCrN Coated

Invoice description: Em 1x4-1/4locx1x7cr0.251 1fl Alcrn Noncc Hp

UNSPSC: 27112803
Manufacturer PN: 98966
$941.12 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, High Performance Non-Center Cutting Single End, Series: TMR, 1 in Cutter Dia, 1/4 in Corner Radius, 7 in Overall Length, 4-1/4 in Length of Cut, 11 Flutes, Spiral Flute, 1 in Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlCrN Coated

  • Features

  • Finisher for titanium
  • Multiple flutes for increased feed rates
  • Odd number of flutes to naturally break up harmonics
  • Effective for trochoidal milling
  • Up to 5% radial (ap) engagement
  • Can be used to finish most steels under 40RC, as well as aluminum
  • Conventional grind for better finish cutting and less push off
  • Engineered for titanium
  • Regrindable
  • Corner radius tolerance +/-0.001 in (+/-0.025 mm)

Specifications

ApplicationUsed to finish most steels under 40Rc, as well as aluminum
Corner Radius1/4 in
Cutter Diameter1 in
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut4-1/4 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes11
Overall Length7 in
SeriesTMR
Shank Diameter1 in
Shank TypeRound
TypeHigh Performance Non-Center Cutting Single End

Additional Information

Country of OriginUS
