GARR GARR 98796

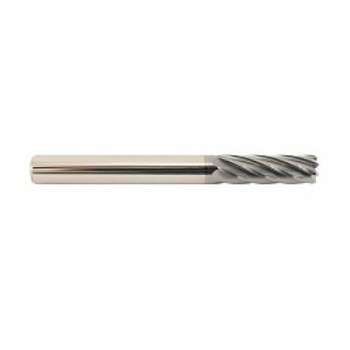

GARR 98796 TMR High Performance Non-Center Cutting Single End Mill, 3/4 in Dia Cutter, 0.12 in Corner Radius, 2-1/8 in Length of Cut, 9 Flutes, 3/4 in Dia Shank, 5 in OAL, AlCrN Coated

Invoice description: Em 3/4x2-1/8locx3/4x5 Cr.129fl Al Crn Noncc Hp

UNSPSC: 27112803
Manufacturer PN: 98796
$393.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, High Performance Non-Center Cutting Single End, Series: TMR, 3/4 in Diameter Cutter, 0.12 in Corner Radius, 5 in Overall Length, 2-1/8 in Length of Cut, 9 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlCrN Coated

  • Features

  • Finisher for titanium
  • Multiple flutes for increased feed rates
  • Odd number of flutes to naturally break up harmonics
  • Effective for trochoidal milling
  • Up to 5% radial (ap) engagement
  • Can be used to finish most steels under 40RC, as well as aluminum
  • Conventional grind for better finish cutting and less push off
  • Engineered for titanium
  • Regrindable
  • Corner radius tolerance +/-0.001 in (+/-0.025 mm)

Specifications

ApplicationUsed to finish most steels under 40Rc, as well as aluminum
Corner Radius0.12 in
Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut2-1/8 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes9
Overall Length5 in
SeriesTMR
Shank Diameter3/4 in
Shank TypeRound
TypeHigh Performance Non-Center Cutting Single End

Additional Information

Country of OriginUS
